Schneider Electric M9R12491 Multi9 Gfp 4P 100A 86Ma A-Si 480Y/277V
Schneider Electric
$1,500.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

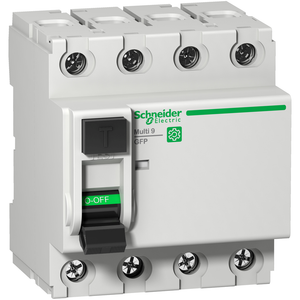

Schneider Electric M9R12491 Multi9 Gfp 4P 100A 86Ma A-Si 480Y/277V
This product is a Multi GFP residual current circuit breaker (RCCB). It is a 4P circuit breaker with 100A In rated current, a sensitivity of 86mA with a A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The weight is 0.45kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
- Mounting Mode:
- clip-on
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Utilisation Category:
- AC-23A EN/IEC 61008-1
- Rated Breaking And Making Capacity:
- Idm 1500 A EN/IEC 61008-1
- Rohs Exemption Information:
- Yes
- Neutral Position:
- left
- Relative Humidity:
- 95-95 % 55-55 °C
- Width:
- 72 mm
- Contact Position Indicator:
- yes
- Ambient Air Temperature For Operation:
- -25-60 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Earth-Leakage Protection Time Delay:
- instantaneous
- Mounting Support:
- DIN rail
- Ambient Air Temperature For Storage:
- -40-70 °C
- 9 Mm Pitches:
- 8
- Depth:
- 60 mm
- Net Weight:
- 0.45 kg
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- [Ui] Rated Insulation Voltage:
- 440 V AC 50/60 Hz
- Connections - Terminals:
- tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
- Height:
- 81 mm
- Locking Options Description:
- padlocking in OFF position
- Network Type:
- AC
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 61008-1
- Product Certifications:
- IEC || UL
- [Ue] Rated Operational Voltage:
- 415 V AC 50 Hz || 480Y/277 V AC 60 Hz
- Mechanical Durability:
- 20000 cycles
- Mercury Free:
- Yes
- Rated Conditional Short-Circuit Current:
- Inc 10 kA 100 A gG
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Residual Current Tripping Technology:
- voltage independent
- Product Name:
- Multi9 GFP
- Pollution Degree:
- 3
- Electromagnetic Compatibility:
- 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
- Control Type:
- toggle
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- residual current circuit breaker (RCCB)
- Device Application:
- distribution
- Earth-Leakage Sensitivity:
- 86 mA UL 1053 || 100 mA EN/IEC 61008-1
- Local Signalling:
- ON, OFF, fault trip
- Tropicalisation:
- 2 IEC 60068-1
- Standards:
- EN/IEC 61008-1 || UL 1053
- Earth-Leakage Protection Class:
- type A-SI (Super Immunised)
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Range:
- Multi9
- Eu Rohs Directive:
- Compliant with Exemptions
- Color:
- Gray
- Line Rated Current:
- 100 A 40 °C EN/IEC 61008-1
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Device Short Name:
- GFP
- Poles Description:
- 4P
