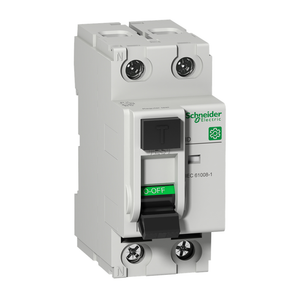

Schneider Electric M9R14240 Multi9 Id 2P 40A 300Ma Ac Rccb

Schneider Electric M9R14240 Multi9 Id 2P 40A 300Ma Ac Rccb

Schneider Electric
SKU:
M9R14240
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$231.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi ID product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, 300mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 400A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 2000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.23kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.
Additional Information
Electrical Durability:
2000 cycles
Product Or Component Type:
residual current circuit breaker (RCCB)
Depth:
73 mm
[Ui] Rated Insulation Voltage:
440 V AC 50 Hz EN/IEC 61008-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Color:
Gray
Earth-Leakage Protection Class:
type AC
Range:
Multi9
Standards:
EN/IEC 61008-1
Tightening Torque:
3.5-3.5 N.m top or bottom
Neutral Position:
left
Control Type:
toggle
Rated Breaking And Making Capacity:
Idm 400 A EN/IEC 61008-1
Product Certifications:
CE
9 Mm Pitches:
4
Device Short Name:
ID
Product Name:
Multi9 ID
Relative Humidity:
95-95 % 55-55 °C
Contact Position Indicator:
yes
Ambient Air Temperature For Operation:
-5-40 °C
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Mechanical Durability:
20000 cycles
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Pollution Degree:
3
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Net Weight:
0.23 kg
[Ue] Rated Operational Voltage:
220...240 V AC 50 Hz
Connections - Terminals:
tunnel type terminal top or bottom) 1-35 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 3 16-16 mm² - rigid || tunnel type terminal top or bottom) 3 10-10 mm² - flexible || tunnel typ
Locking Options Description:
padlocking device
Residual Current Tripping Technology:
voltage independent
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 61008-1
Poles Description:
2P
Mounting Support:
DIN rail
Network Type:
AC
Surge Current:
250 A
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Disclosure:
ENVPEP2301023EN
Height:
81 mm
Line Rated Current:
40 A
Tropicalisation:
2 IEC 60068-1
Electromagnetic Compatibility:
8/20 µs impulse withstand, 250 A EN/IEC 61008-1
Mounting Mode:
clip-on
Width:
36 mm
Network Frequency:
50 Hz
Earth-Leakage Sensitivity:
300 mA
Local Signalling:
ON, OFF, fault trip
Circularity Profile:
N/A
Wire Stripping Length:
15 mm for top or bottom connection
Device Application:
distribution
Earth-Leakage Protection Time Delay:
instantaneous
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-40-60 °C
Rated Conditional Short-Circuit Current:
Inc 10 kA
