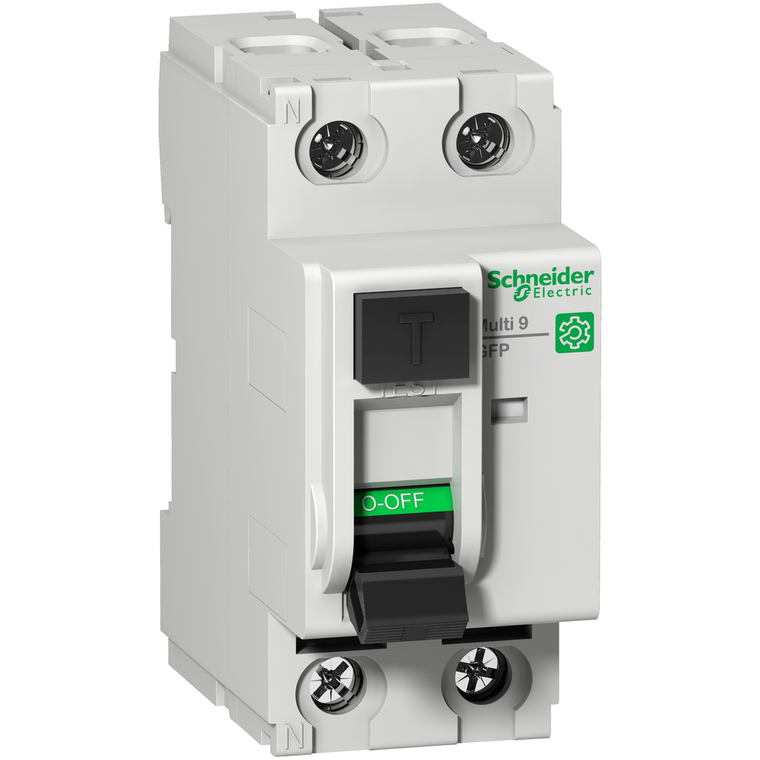

Schneider Electric M9R41225 Multi9 Gfp 2P 25A 26Ma A-Si 480Y/277V
Schneider Electric
$696.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric M9R41225 Multi9 Gfp 2P 25A 26Ma A-Si 480Y/277V
This Multi GFP product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, 26mA earth leakage sensitivity and A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
- Depth:
- 60 mm
- [Ue] Rated Operational Voltage:
- 480Y/277 V AC 60 Hz || 240/415 V AC 50 Hz
- Network Frequency:
- 50/60 Hz
- Contact Position Indicator:
- yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Application:
- distribution
- Neutral Position:
- left
- Earth-Leakage Sensitivity:
- 26 mA UL 1053 || 30 mA EN/IEC 61008-1
- Earth-Leakage Protection Class:
- type A-SI (Super Immunised)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Connections - Terminals:
- tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Name:
- Multi9 GFP
- Height:
- 81 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Poles Description:
- 2P
- Mounting Mode:
- clip-on
- Environmental Disclosure:
- ENVPEP2301023EN
- Tropicalisation:
- 2 IEC 60068-1
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Pollution Degree:
- 3
- Electromagnetic Compatibility:
- 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
- Range:
- Multi9
- Rated Breaking And Making Capacity:
- Idm 1500 A EN/IEC 61008-1
- Mounting Support:
- DIN rail
- Net Weight:
- 0.22 kg
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Network Type:
- AC
- 9 Mm Pitches:
- 4
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Line Rated Current:
- 25 A 40 °C EN/IEC 61008-1
- Mechanical Durability:
- 20000 cycles
- Utilisation Category:
- AC-23A EN/IEC 61008-1
- Local Signalling:
- ON, OFF, fault trip
- Rated Conditional Short-Circuit Current:
- Inc 10 kA 100 A gG
- Locking Options Description:
- padlocking in OFF position
- Color:
- Gray
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Relative Humidity:
- 95-95 % 55-55 °C
- Device Short Name:
- GFP
- Residual Current Tripping Technology:
- voltage independent
- Control Type:
- toggle
- Standards:
- EN/IEC 61008-1 || UL 1053
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Width:
- 36 mm
- Product Certifications:
- IEC || UL
- Ambient Air Temperature For Operation:
- -25-60 °C
- [Ui] Rated Insulation Voltage:
- 440 V AC 50/60 Hz
- Product Or Component Type:
- residual current circuit breaker (RCCB)
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 61008-1
- Earth-Leakage Protection Time Delay:
- instantaneous
