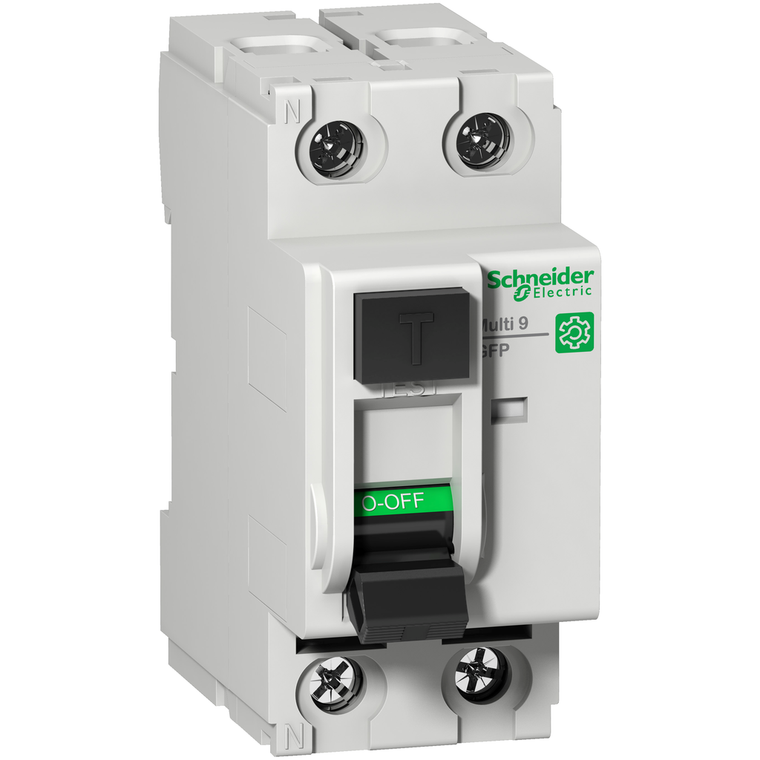

Schneider Electric M9R44225 Multi9 Gfp 2P 25A 260Ma A-Si 480Y/277V

Schneider Electric M9R44225 Multi9 Gfp 2P 25A 260Ma A-Si 480Y/277V

Schneider Electric
SKU:
M9R44225
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$732.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is a Multi GFP residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, a sensitivity of 260mA with a A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
Additional Information
Rohs Exemption Information:
Yes
Product Or Component Type:
residual current circuit breaker (RCCB)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mechanical Durability:
20000 cycles
Width:
36 mm
Residual Current Tripping Technology:
voltage independent
Range:
Multi9
Earth-Leakage Protection Class:
type A-SI (Super Immunised)
Utilisation Category:
AC-23A EN/IEC 61008-1
Network Frequency:
50/60 Hz
Standards:
EN/IEC 61008-1 || UL 1053
Poles Description:
2P
Control Type:
toggle
Mounting Support:
DIN rail
Relative Humidity:
95-95 % 55-55 °C
Rated Breaking And Making Capacity:
Idm 1500 A EN/IEC 61008-1
Electromagnetic Compatibility:
8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
Mercury Free:
Yes
Product Name:
Multi9 GFP
Mounting Mode:
clip-on
Earth-Leakage Sensitivity:
260 mA UL 1053 || 300 mA EN/IEC 61008-1
Network Type:
AC
Ambient Air Temperature For Operation:
-25-60 °C
Line Rated Current:
25 A 40 °C EN/IEC 61008-1
[Ue] Rated Operational Voltage:
480Y/277 V AC 60 Hz || 240/415 V AC 50 Hz
Rated Conditional Short-Circuit Current:
Inc 10 kA 100 A gG
Device Short Name:
GFP
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Contact Position Indicator:
yes
Tropicalisation:
2 IEC 60068-1
Device Application:
distribution
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Net Weight:
0.22 kg
Pollution Degree:
3
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 61008-1
Eu Rohs Directive:
Compliant with Exemptions
Locking Options Description:
padlocking in OFF position
Ambient Air Temperature For Storage:
-40-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Local Signalling:
ON, OFF, fault trip
Height:
81 mm
[Ui] Rated Insulation Voltage:
440 V AC 50/60 Hz
Connections - Terminals:
tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
Earth-Leakage Protection Time Delay:
instantaneous
Neutral Position:
left
Tightening Torque:
3.5-3.5 N.m top or bottom
Depth:
60 mm
Wire Stripping Length:
14 mm for top or bottom connection
Product Certifications:
IEC || UL
Color:
Gray
9 Mm Pitches:
4
