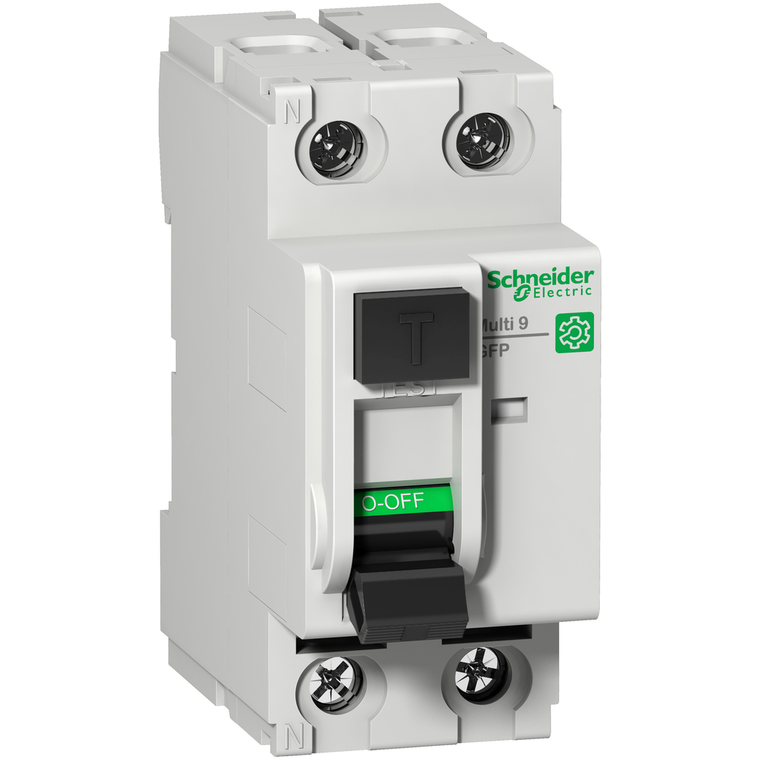

Schneider Electric M9R81240 Multi9 Gfp 2P 40A 26Ma A-Si 120-240V

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9R81240 Multi9 Gfp 2P 40A 26Ma A-Si 120-240V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9R81240

UPC:

3606481198440

MPN:

Condition:

New

Product Or Component Type:

residual current circuit breaker (RCCB)

Network Frequency:

50/60 Hz

Circularity Profile:

N/A

Environmental Disclosure:

ENVPEP2301023EN

Mercury Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Locking Options Description:

padlocking in OFF position

Contact Position Indicator:

yes

Standards:

EN/IEC 61008-1 || UL 1053

Tropicalisation:

2 IEC 60068-1

Connections - Terminals:

tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule

Relative Humidity:

95-95 % 55-55 °C

9 Mm Pitches:

4

Product Name:

Multi9 GFP

Mechanical Durability:

20000 cycles

Color:

Gray

Mounting Support:

DIN rail

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 61008-1

Neutral Position:

left

Pollution Degree:

3

Mounting Mode:

clip-on

Depth:

60 mm

Rohs Exemption Information:

Yes

[Ue] Rated Operational Voltage:

120/240 V AC 60 Hz || 240 V AC 50 Hz

Earth-Leakage Protection Class:

type A-SI (Super Immunised)

Tightening Torque:

3.5-3.5 N.m top or bottom

Control Type:

toggle

Device Short Name:

GFP

Wire Stripping Length:

14 mm for top or bottom connection

Earth-Leakage Sensitivity:

26 mA UL 1053 || 30 mA EN/IEC 61008-1

Sustainable Offer Status:

Green Premium product

Net Weight:

0.22 kg

Rated Breaking And Making Capacity:

Idm 1500 A EN/IEC 61008-1

Line Rated Current:

40 A 40 °C EN/IEC 61008-1

Ambient Air Temperature For Storage:

-40-70 °C

Electromagnetic Compatibility:

8/20 µs impulse withstand, 3000 A EN/IEC 61008-1

Range:

Multi9

Eu Rohs Directive:

Compliant with Exemptions

Poles Description:

2P

Ambient Air Temperature For Operation:

-25-60 °C

[Ui] Rated Insulation Voltage:

440 V AC 50/60 Hz

Residual Current Tripping Technology:

voltage independent

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Local Signalling:

ON, OFF, fault trip

Product Certifications:

IEC || UL

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Network Type:

AC

Rated Conditional Short-Circuit Current:

Inc 10 kA 100 A gG

Utilisation Category:

AC-23A EN/IEC 61008-1

Earth-Leakage Protection Time Delay:

instantaneous

Device Application:

distribution

Width:

36 mm

Height:

81 mm
