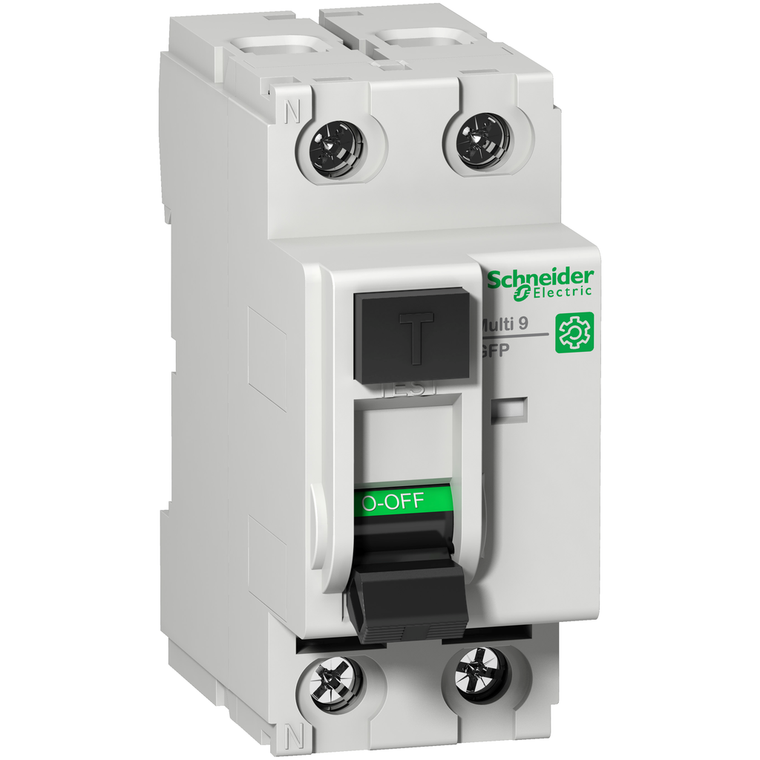

Schneider Electric M9R84240 Multi9 Gfp 2P 40A 260Ma A-Si 120-240V
Schneider Electric
$467.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric M9R84240 Multi9 Gfp 2P 40A 260Ma A-Si 120-240V
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This is a Multi GFP residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 40A, A-SI type protection class and a 260mA earth leakage sensitivity. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
- Color:
- Gray
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- [Ue] Rated Operational Voltage:
- 120/240 V AC 60 Hz || 240 V AC 50 Hz
- Net Weight:
- 0.22 kg
- Utilisation Category:
- AC-23A EN/IEC 61008-1
- Depth:
- 60 mm
- Locking Options Description:
- padlocking in OFF position
- Earth-Leakage Sensitivity:
- 260 mA UL 1053 || 300 mA EN/IEC 61008-1
- Ambient Air Temperature For Operation:
- -25-60 °C
- Relative Humidity:
- 95-95 % 55-55 °C
- Ambient Air Temperature For Storage:
- -40-70 °C
- [Ui] Rated Insulation Voltage:
- 440 V AC 50/60 Hz
- Sustainable Offer Status:
- Green Premium product
- Mounting Support:
- DIN rail
- Earth-Leakage Protection Class:
- type A-SI (Super Immunised)
- Mounting Mode:
- clip-on
- Device Application:
- distribution
- Range:
- Multi9
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- residual current circuit breaker (RCCB)
- Mercury Free:
- Yes
- Product Name:
- Multi9 GFP
- Tropicalisation:
- 2 IEC 60068-1
- Pollution Degree:
- 3
- Control Type:
- toggle
- Poles Description:
- 2P
- Network Type:
- AC
- Eu Rohs Directive:
- Compliant with Exemptions
- Connections - Terminals:
- tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
- Local Signalling:
- ON, OFF, fault trip
- Network Frequency:
- 50/60 Hz
- Standards:
- EN/IEC 61008-1 || UL 1053
- Rated Conditional Short-Circuit Current:
- Inc 10 kA 100 A gG
- Product Certifications:
- IEC || UL
- Width:
- 36 mm
- Rated Breaking And Making Capacity:
- Idm 1500 A EN/IEC 61008-1
- Electromagnetic Compatibility:
- 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Earth-Leakage Protection Time Delay:
- instantaneous
- Neutral Position:
- left
- 9 Mm Pitches:
- 4
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 61008-1
- Residual Current Tripping Technology:
- voltage independent
- Contact Position Indicator:
- yes
- Wire Stripping Length:
- 14 mm for top or bottom connection
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Height:
- 81 mm
- Environmental Disclosure:
- ENVPEP2301023EN
- Device Short Name:
- GFP
- Mechanical Durability:
- 20000 cycles
- Circularity Profile:
- N/A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Line Rated Current:
- 40 A 40 °C EN/IEC 61008-1
