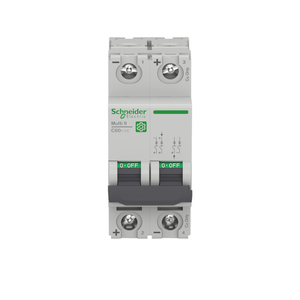

Schneider Electric M9U11206 Multi9 C60H-Dc 2P B 6A 10Ka 500V-Dc Mcb
Schneider Electric
$392.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 2P circuit breaker with 2 protected poles, 6A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VDC conforming to EN/IEC 60947-2 standard and 20kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
- Toxic Heavy Metal Free:
- Yes
- Trip Unit Technology:
- thermal-magnetic
- Reach Free Of Svhc:
- Yes
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Ambient Air Temperature For Operation:
- -25-70 °C
- Curve Code:
- B
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- IEC || CCC || UR
- Device Short Name:
- C60H-DC
- Sustainable Offer Status:
- Green Premium product
- Local Signalling:
- ON/OFF indication
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ui] Rated Insulation Voltage:
- 500 V DC EN/IEC 60947-2
- Pollution Degree:
- 3 EN/IEC 60947-2
- Network Type:
- DC
- Contact Position Indicator:
- yes
- Eu Rohs Directive:
- Compliant
- Mechanical Durability:
- 20000 cycles
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Ambient Air Temperature For Storage:
- -40-85 °C
- Height:
- 81 mm
- [Ue] Rated Operational Voltage:
- 220 V DC || 440 V DC || 500 V DC
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 1077
- Suitability For Isolation:
- yes EN/IEC 60947-2
- 9 Mm Pitches:
- 4
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Product Name:
- Multi9 C60H-DC
- Poles Description:
- 2P
- Environmental Disclosure:
- ENVPEP2308050EN
- Mounting Support:
- DIN rail
- Control Type:
- toggle
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 440 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC || 15 kA 75 % EN/IEC 60947-2 - 220 V DC || 7.5 kA 75 % GB 14048.2 - 440 V DC || 4.5 kA 75 % GB 14048.2 - 500 V DC || 15 kA 75 % GB 14048.2 - 220 V DC
- Provision For Padlocking:
- padlockable
- Width:
- 36 mm
- Depth:
- 73 mm
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tun
- Number Of Protected Poles:
- 2
- Heat Dissipation:
- 5.4-5.4 W 440 V - 6 A
- Net Weight:
- 0.128 kg
- Earth-Leakage Protection:
- without
- Line Rated Current:
- 6 A 25 °C EN/IEC 60947-2
- Device Application:
- distribution
- Product Or Component Type:
- miniature circuit-breaker
- Mercury Free:
- Yes
- Relative Humidity:
- 95-95 % 55-55 °C
- Tropicalisation:
- 2 IEC 60068-2 || 2 GB 14048.2
- Breaking Capacity:
- 20 kA Icu 220 V DC EN/IEC 60947-2 || 10 kA Icu 440 V DC EN/IEC 60947-2 || 6 kA Icu 500 V DC EN/IEC 60947-2 || 5 kA AIR 12...500 V DC UL 1077 || 20 kA Icu 220 V DC GB 14048.2 || 10 kA Icu 440 V DC GB 14048.2 || 6 kA Icu 500 V DC GB 14048.2
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Electrical Durability:
- 3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC
- Range:
- Multi9
- Color:
- Gray
- Tightening Torque:
- 2.5-2.5 N.m top or bottom
- Magnetic Tripping Limit:
- 3â¦7 x In DC
- Mounting Mode:
- clip-on
- Utilisation Category:
- category A EN/IEC 60947-2
