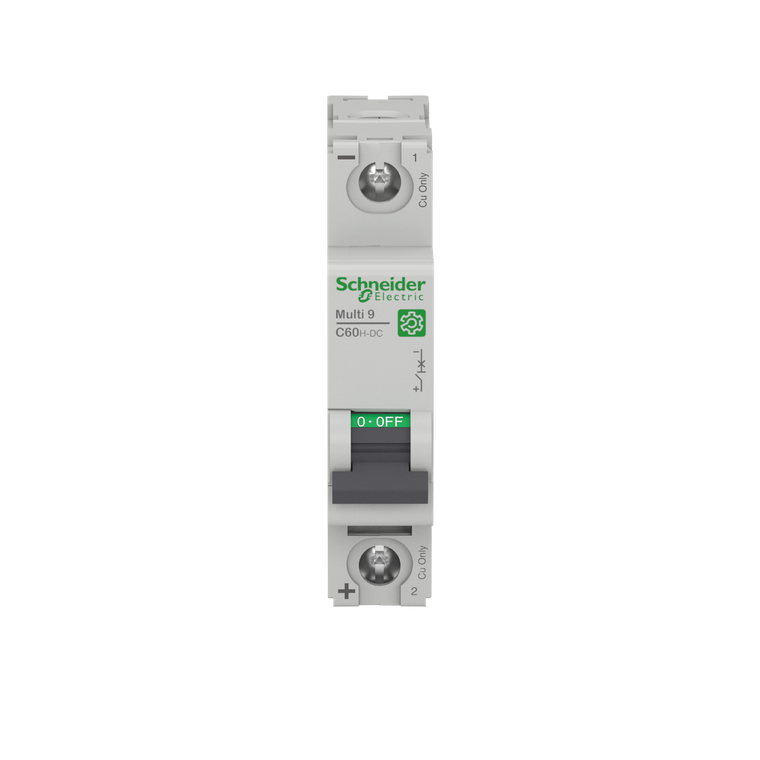

Schneider Electric M9U21104 Multi9 C60H-Dc 1P C 4A 10Ka 250V-Dc Mcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9U21104 Multi9 C60H-Dc 1P C 4A 10Ka 250V-Dc Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9U21104

UPC:

3606480741616

MPN:

Condition:

New

Local Signalling:

ON/OFF indication

Number Of Protected Poles:

1

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tunnel

Mounting Support:

DIN rail

Device Application:

distribution

Ambient Air Temperature For Storage:

-40-85 °C

Breaking Capacity:

10 kA Icu 220 V DC EN/IEC 60947-2 || 6 kA Icu 250 V DC EN/IEC 60947-2 || 20 kA Icu 110 V DC EN/IEC 60947-2 || 5 kA AIR 12...250 V DC UL 1077 || 10 kA Icu 220 V DC GB 14048.2 || 6 kA Icu 250 V DC GB 14048.2 || 20 kA Icu 110 V DC GB 14048.2

Tightening Torque:

2.5-2.5 N.m top or bottom

Network Type:

DC

Mounting Mode:

clip-on

Mercury Free:

Yes

Eu Rohs Directive:

Compliant

Curve Code:

C

[Ui] Rated Insulation Voltage:

500 V DC EN/IEC 60947-2

Poles Description:

1P

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

miniature circuit-breaker

Device Short Name:

C60H-DC

Wire Stripping Length:

14 mm for top or bottom connection

Height:

81 mm

Width:

18 mm

Pollution Degree:

3 EN/IEC 60947-2

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 1077

Depth:

73 mm

Environmental Disclosure:

ENVPEP2308050EN

Suitability For Isolation:

yes EN/IEC 60947-2

Circularity Profile:

N/A

Earth-Leakage Protection:

without

Line Rated Current:

4 A 25 °C EN/IEC 60947-2

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Color:

Gray

Provision For Padlocking:

padlockable

Range:

Multi9

Tropicalisation:

2 IEC 60068-2 || 2 GB 14048.2

Utilisation Category:

category A EN/IEC 60947-2

9 Mm Pitches:

2

Trip Unit Technology:

thermal-magnetic

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Magnetic Tripping Limit:

7...10 x In DC

Net Weight:

0.128 kg

Reach Free Of Svhc:

Yes

Control Type:

toggle

Toxic Heavy Metal Free:

Yes

Relative Humidity:

95-95 % 55-55 °C

Mechanical Durability:

20000 cycles

Rohs Exemption Information:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Electrical Durability:

3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC

Heat Dissipation:

2.4-2.4 W 220 V - 4 A

[Ics] Rated Service Breaking Capacity:

7.5 kA 75 % EN/IEC 60947-2 - 220 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 250 V DC || 15 kA 75 % EN/IEC 60947-2 - 110 V DC || 7.5 kA 75 % GB 14048.2 - 220 V DC || 4.5 kA 75 % GB 14048.2 - 250 V DC || 15 kA 75 % GB 14048.2 - 110 V DC

Contact Position Indicator:

yes

Product Certifications:

IEC || CCC || UR

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Product Name:

Multi9 C60H-DC

[Ue] Rated Operational Voltage:

250 V DC || 110 V DC || 220 V DC

Ambient Air Temperature For Operation:

-25-70 °C
