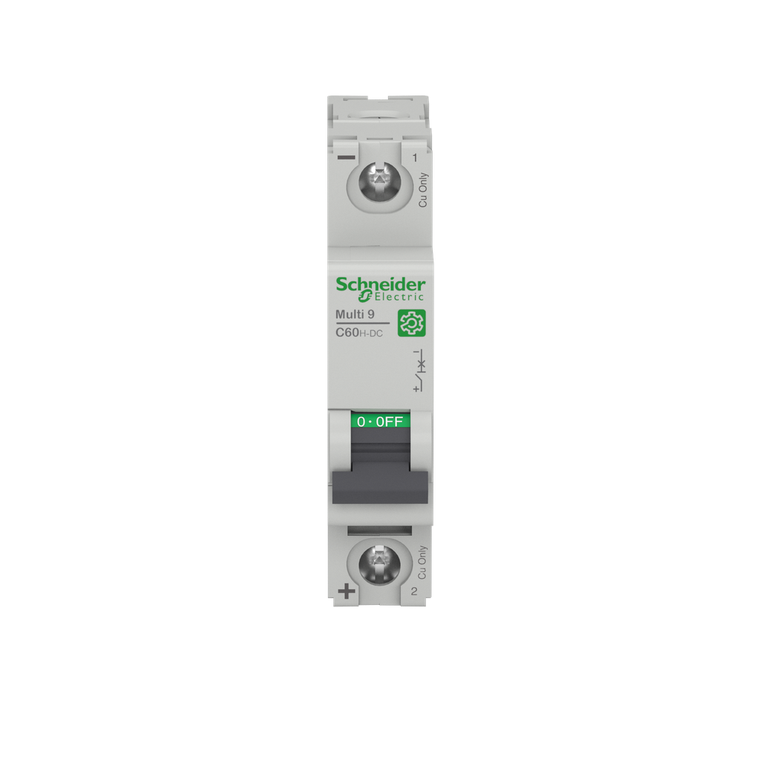

Schneider Electric M9U21113 Multi9 C60H-Dc 1P C 13A 10Ka 250V-Dc Mcb

Schneider Electric M9U21113 Multi9 C60H-Dc 1P C 13A 10Ka 250V-Dc Mcb

Schneider Electric
SKU:
M9U21113
|
UPC:
3.60648E+12
$273.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 1P circuit breaker with 1 protected pole, 13A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN/IEC 60947-2 standard and 10kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
Additional Information
Suitability For Isolation:
yes EN/IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Network Type:
DC
Heat Dissipation:
2.5-2.5 W 220 V - 13 A
Device Application:
distribution
Rohs Exemption Information:
Yes
Control Type:
toggle
[Ui] Rated Insulation Voltage:
500 V DC EN/IEC 60947-2
Wire Stripping Length:
14 mm for top or bottom connection
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 220 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 250 V DC || 15 kA 75 % EN/IEC 60947-2 - 110 V DC || 7.5 kA 75 % GB 14048.2 - 220 V DC || 4.5 kA 75 % GB 14048.2 - 250 V DC || 15 kA 75 % GB 14048.2 - 110 V DC
Magnetic Tripping Limit:
7...10 x In DC
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Sustainable Offer Status:
Green Premium product
Curve Code:
C
Color:
Gray
Mechanical Durability:
20000 cycles
Mounting Mode:
clip-on
Height:
81 mm
Contact Position Indicator:
yes
Utilisation Category:
category A EN/IEC 60947-2
Product Or Component Type:
miniature circuit-breaker
Device Short Name:
C60H-DC
Number Of Protected Poles:
1
Tropicalisation:
2 IEC 60068-2 || 2 GB 14048.2
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077
Circularity Profile:
N/A
Depth:
73 mm
Range:
Multi9
Local Signalling:
ON/OFF indication
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tun
Earth-Leakage Protection:
without
Relative Humidity:
95-95 % 55-55 °C
Environmental Disclosure:
ENVPEP120608EN_V0
Electrical Durability:
3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC
Product Name:
Multi9 C60H-DC
Toxic Heavy Metal Free:
Yes
Ambient Air Temperature For Storage:
-40-85 °C
Tightening Torque:
2.5-2.5 N.m top or bottom
Provision For Padlocking:
padlockable
Product Certifications:
IEC || CCC || UR
Line Rated Current:
13 A 25 °C EN/IEC 60947-2
Width:
18 mm
9 Mm Pitches:
2
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Poles Description:
1P
Breaking Capacity:
10 kA Icu 220 V DC EN/IEC 60947-2 || 6 kA Icu 250 V DC EN/IEC 60947-2 || 20 kA Icu 110 V DC EN/IEC 60947-2 || 5 kA AIR 12...250 V DC UL 1077 || 10 kA Icu 220 V DC GB 14048.2 || 6 kA Icu 250 V DC GB 14048.2 || 20 kA Icu 110 V DC GB 14048.2
Pollution Degree:
3 EN/IEC 60947-2
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free:
Yes
Net Weight:
0.128 kg
Mounting Support:
DIN rail
[Ue] Rated Operational Voltage:
250 V DC || 110 V DC || 220 V DC
Ambient Air Temperature For Operation:
-25-70 °C
Eu Rohs Directive:
Compliant
Brochure:
View
Datasheet:
View
