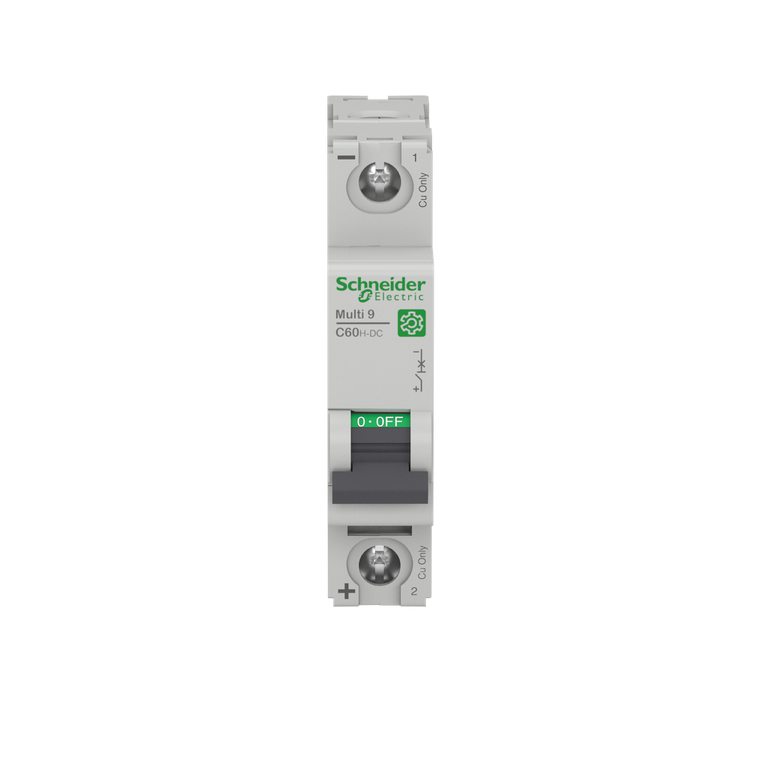

Schneider Electric M9U21120 Multi9 C60H-Dc 1P C 20A 10Ka 250V-Dc Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9U21120

UPC:

3606480741661

MPN:

Condition:

New

Local Signalling:

ON/OFF indication

Mounting Support:

DIN rail

Eu Rohs Directive:

Compliant

Ambient Air Temperature For Storage:

-40-85 °C

Electrical Durability:

3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC

Range:

Multi9

Tightening Torque:

2.5-2.5 N.m top or bottom

Circularity Profile:

N/A

Toxic Heavy Metal Free:

Yes

Magnetic Tripping Limit:

7...10 x In DC

[Ui] Rated Insulation Voltage:

500 V DC EN/IEC 60947-2

Device Short Name:

C60H-DC

Product Certifications:

IEC || CCC || UR

Curve Code:

C

Provision For Padlocking:

padlockable

Product Or Component Type:

miniature circuit-breaker

Relative Humidity:

95-95 % 55-55 °C

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 1077

Mounting Mode:

clip-on

Device Application:

distribution

Depth:

73 mm

Network Type:

DC

Color:

Gray

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Ambient Air Temperature For Operation:

-25-70 °C

Breaking Capacity:

10 kA Icu 220 V DC EN/IEC 60947-2 || 6 kA Icu 250 V DC EN/IEC 60947-2 || 20 kA Icu 110 V DC EN/IEC 60947-2 || 5 kA AIR 12...250 V DC UL 1077 || 10 kA Icu 220 V DC GB 14048.2 || 6 kA Icu 250 V DC GB 14048.2 || 20 kA Icu 110 V DC GB 14048.2

Heat Dissipation:

3-3 W 220 V - 20 A

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Number Of Protected Poles:

1

Poles Description:

1P

Line Rated Current:

20 A 25 °C EN/IEC 60947-2

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tunnel

Sustainable Offer Status:

Green Premium product

[Ue] Rated Operational Voltage:

250 V DC || 110 V DC || 220 V DC

Reach Free Of Svhc:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Trip Unit Technology:

thermal-magnetic

Suitability For Isolation:

yes EN/IEC 60947-2

Pollution Degree:

3 EN/IEC 60947-2

Product Name:

Multi9 C60H-DC

Tropicalisation:

2 IEC 60068-2 || 2 GB 14048.2

Utilisation Category:

category A EN/IEC 60947-2

Contact Position Indicator:

yes

Rohs Exemption Information:

Yes

9 Mm Pitches:

2

Mechanical Durability:

20000 cycles

Width:

18 mm

Environmental Disclosure:

ENVPEP2308050EN

Wire Stripping Length:

14 mm for top or bottom connection

Height:

81 mm

Control Type:

toggle

Net Weight:

0.128 kg

Earth-Leakage Protection:

without

Mercury Free:

Yes

[Ics] Rated Service Breaking Capacity:

7.5 kA 75 % EN/IEC 60947-2 - 220 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 250 V DC || 15 kA 75 % EN/IEC 60947-2 - 110 V DC || 7.5 kA 75 % GB 14048.2 - 220 V DC || 4.5 kA 75 % GB 14048.2 - 250 V DC || 15 kA 75 % GB 14048.2 - 110 V DC
