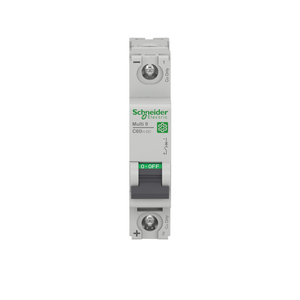

Schneider Electric M9U21140 Multi9 C60H-Dc 1P C 40A 10Ka 250V-Dc Mcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9U21140 Multi9 C60H-Dc 1P C 40A 10Ka 250V-Dc Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9U21140

UPC:

3606480741692

MPN:

Condition:

New

Relative Humidity:

95-95 % 55-55 °C

Heat Dissipation:

4.3-4.3 W 220 V - 40 A

Eu Rohs Directive:

Compliant

Net Weight:

0.128 kg

Toxic Heavy Metal Free:

Yes

Utilisation Category:

category A EN/IEC 60947-2

9 Mm Pitches:

2

Provision For Padlocking:

padlockable

Wire Stripping Length:

14 mm for top or bottom connection

Poles Description:

1P

[Ics] Rated Service Breaking Capacity:

7.5 kA 75 % EN/IEC 60947-2 - 220 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 250 V DC || 15 kA 75 % EN/IEC 60947-2 - 110 V DC || 7.5 kA 75 % GB 14048.2 - 220 V DC || 4.5 kA 75 % GB 14048.2 - 250 V DC || 15 kA 75 % GB 14048.2 - 110 V DC

Depth:

73 mm

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 1077

Number Of Protected Poles:

1

Color:

Gray

Sustainable Offer Status:

Green Premium product

[Ue] Rated Operational Voltage:

250 V DC || 110 V DC || 220 V DC

Electrical Durability:

3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC

Local Signalling:

ON/OFF indication

Connections - Terminals:

tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid stranded || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - flexible || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - flexible with ferrule || tunnel

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-25-70 °C

Product Or Component Type:

miniature circuit-breaker

Height:

81 mm

Curve Code:

C

[Ui] Rated Insulation Voltage:

500 V DC EN/IEC 60947-2

Environmental Disclosure:

ENVPEP120608EN_V0

Pollution Degree:

3 EN/IEC 60947-2

Rohs Exemption Information:

Yes

Earth-Leakage Protection:

without

Mercury Free:

Yes

Range:

Multi9

Tightening Torque:

3.5-3.5 N.m top or bottom

Magnetic Tripping Limit:

7...10 x In DC

Product Name:

Multi9 C60H-DC

Product Certifications:

IEC || CCC || UR

Tropicalisation:

2 IEC 60068-2 || 2 GB 14048.2

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Device Application:

distribution

Mounting Support:

DIN rail

Breaking Capacity:

10 kA Icu 220 V DC EN/IEC 60947-2 || 6 kA Icu 250 V DC EN/IEC 60947-2 || 20 kA Icu 110 V DC EN/IEC 60947-2 || 5 kA AIR 12...250 V DC UL 1077 || 10 kA Icu 220 V DC GB 14048.2 || 6 kA Icu 250 V DC GB 14048.2 || 20 kA Icu 110 V DC GB 14048.2

Mounting Mode:

clip-on

Ambient Air Temperature For Storage:

-40-85 °C

Contact Position Indicator:

yes

Mechanical Durability:

20000 cycles

Reach Free Of Svhc:

Yes

Network Type:

DC

Circularity Profile:

N/A

Device Short Name:

C60H-DC

Width:

18 mm

Line Rated Current:

40 A 25 °C EN/IEC 60947-2

Trip Unit Technology:

thermal-magnetic

Control Type:

toggle

Suitability For Isolation:

yes EN/IEC 60947-2
