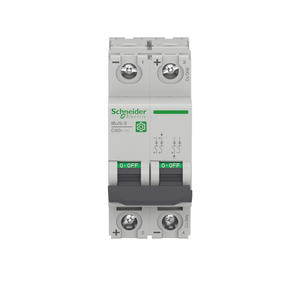

Schneider Electric M9U21232 Multi9 C60H-Dc 2P 32A C 10Ka 500V-Dc Mcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9U21232 Multi9 C60H-Dc 2P 32A C 10Ka 500V-Dc Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9U21232

UPC:

3.60648E+12

MPN:

Condition:

New

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Curve Code:

C

Trip Unit Technology:

thermal-magnetic

Rohs Exemption Information:

Yes

Network Type:

DC

Range:

Multi9

Poles Description:

2P

Suitability For Isolation:

yes EN/IEC 60947-2

Circularity Profile:

N/A

Connections - Terminals:

tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid stranded || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - flexible || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - flexible with ferrule || tunnel

Breaking Capacity:

20 kA Icu 220 V DC EN/IEC 60947-2 || 10 kA Icu 440 V DC EN/IEC 60947-2 || 6 kA Icu 500 V DC EN/IEC 60947-2 || 5 kA AIR 12...500 V DC UL 1077 || 20 kA Icu 220 V DC GB 14048.2 || 10 kA Icu 440 V DC GB 14048.2 || 6 kA Icu 500 V DC GB 14048.2

Environmental Disclosure:

ENVPEP2308050EN

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 1077

[Ue] Rated Operational Voltage:

220 V DC || 440 V DC || 500 V DC

Provision For Padlocking:

padlockable

Earth-Leakage Protection:

without

Depth:

73 mm

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Contact Position Indicator:

yes

Mounting Mode:

clip-on

Tropicalisation:

2 IEC 60068-2 || 2 GB 14048.2

Sustainable Offer Status:

Green Premium product

Magnetic Tripping Limit:

7...10 x In DC

Product Or Component Type:

miniature circuit-breaker

Product Certifications:

IEC || CCC || UR

Wire Stripping Length:

14 mm for top or bottom connection

Toxic Heavy Metal Free:

Yes

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Operation:

-25-70 °C

Heat Dissipation:

7-7 W 440 V - 32 A

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Device Short Name:

C60H-DC

Net Weight:

0.128 kg

Ambient Air Temperature For Storage:

-40-85 °C

9 Mm Pitches:

4

Mercury Free:

Yes

Number Of Protected Poles:

2

Electrical Durability:

3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC

Mechanical Durability:

20000 cycles

Product Name:

Multi9 C60H-DC

Relative Humidity:

95-95 % 55-55 °C

Device Application:

distribution

[Ics] Rated Service Breaking Capacity:

7.5 kA 75 % EN/IEC 60947-2 - 440 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC || 15 kA 75 % EN/IEC 60947-2 - 220 V DC || 7.5 kA 75 % GB 14048.2 - 440 V DC || 4.5 kA 75 % GB 14048.2 - 500 V DC || 15 kA 75 % GB 14048.2 - 220 V DC

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mounting Support:

DIN rail

Tightening Torque:

3.5-3.5 N.m top or bottom

Width:

36 mm

Utilisation Category:

category A EN/IEC 60947-2

Control Type:

toggle

Local Signalling:

ON/OFF indication

Color:

Gray

Eu Rohs Directive:

Compliant

Pollution Degree:

3 EN/IEC 60947-2

Line Rated Current:

32 A 25 °C EN/IEC 60947-2

[Ui] Rated Insulation Voltage:

500 V DC EN/IEC 60947-2

Height:

81 mm
