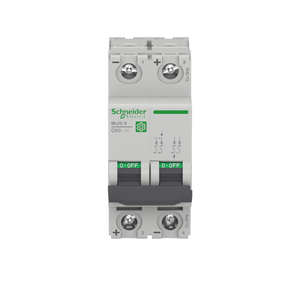

Schneider Electric M9U31206 Multi9 C60H-Dc 2P 6A D 10Ka 500V-Dc Mcb

Schneider Electric M9U31206 Multi9 C60H-Dc 2P 6A D 10Ka 500V-Dc Mcb

Schneider Electric
SKU:
M9U31206
|
UPC:
3606480742057
Availability:
Contact us to confirm availability and lead times.
$392.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 2P circuit breaker with 2 protected poles, 6A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VDC conforming to EN/IEC 60947-2 standard and 20kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
Additional Information
Range:
Multi9
Utilisation Category:
category A EN/IEC 60947-2
Tropicalisation:
2 IEC 60068-2 || 2 GB 14048.2
Net Weight:
0.128 kg
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes EN/IEC 60947-2
Local Signalling:
ON/OFF indication
Network Type:
DC
Device Application:
distribution
Wire Stripping Length:
14 mm for top or bottom connection
Circularity Profile:
N/A
Control Type:
toggle
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Protected Poles:
2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
36 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077
Mercury Free:
Yes
Color:
Gray
Product Or Component Type:
miniature circuit-breaker
Earth-Leakage Protection:
without
[Ue] Rated Operational Voltage:
220 V DC || 440 V DC || 500 V DC
Environmental Disclosure:
ENVPEP2308050EN
Magnetic Tripping Limit:
10...14 x In DC
[Ui] Rated Insulation Voltage:
500 V DC EN/IEC 60947-2
Mounting Support:
DIN rail
Eu Rohs Directive:
Compliant
Breaking Capacity:
20 kA Icu 220 V DC EN/IEC 60947-2 || 10 kA Icu 440 V DC EN/IEC 60947-2 || 6 kA Icu 500 V DC EN/IEC 60947-2 || 5 kA AIR 12...500 V DC UL 1077 || 20 kA Icu 220 V DC GB 14048.2 || 10 kA Icu 440 V DC GB 14048.2 || 6 kA Icu 500 V DC GB 14048.2
Ambient Air Temperature For Operation:
-25-70 °C
Sustainable Offer Status:
Green Premium product
Product Name:
Multi9 C60H-DC
Relative Humidity:
95-95 % 55-55 °C
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tun
Electrical Durability:
3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC
Tightening Torque:
2.5-2.5 N.m top or bottom
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Toxic Heavy Metal Free:
Yes
9 Mm Pitches:
4
Ambient Air Temperature For Storage:
-40-85 °C
Line Rated Current:
6 A 25 °C EN/IEC 60947-2
Mounting Mode:
clip-on
Pollution Degree:
3 EN/IEC 60947-2
Product Certifications:
IEC || CCC || UR
Curve Code:
D
Height:
81 mm
Mechanical Durability:
20000 cycles
Contact Position Indicator:
yes
Provision For Padlocking:
padlockable
Device Short Name:
C60H-DC
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 440 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC || 15 kA 75 % EN/IEC 60947-2 - 220 V DC || 7.5 kA 75 % GB 14048.2 - 440 V DC || 4.5 kA 75 % GB 14048.2 - 500 V DC || 15 kA 75 % GB 14048.2 - 220 V DC
Depth:
73 mm
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Poles Description:
2P
Trip Unit Technology:
thermal-magnetic
Heat Dissipation:
5.4-5.4 W 440 V - 6 A
Brochure:
View
Datasheet:
View
