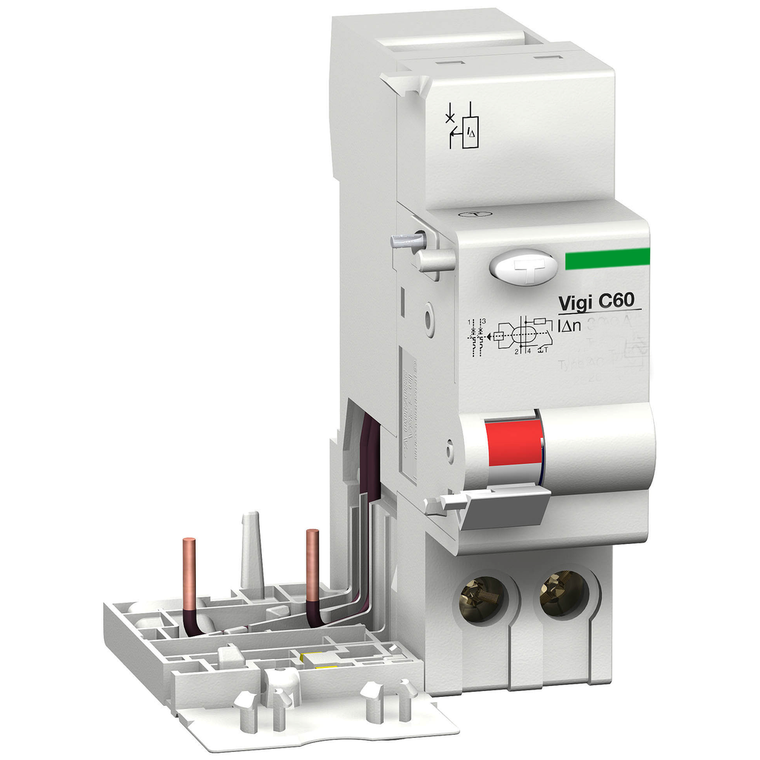

Schneider Electric M9V14263 Multi9 Vigi C60 2P 63A 300Ma Ac
This Vigi C60 is a modular add-on residual current devices. It is a 2P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 230VAC or 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 87mm x (D) 74mm. The weight is 150g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
- Earth-Leakage Sensitivity:
- 300 mA EN/IEC 61009-1
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Connections - Terminals:
- tunnel type terminal bottom) 1-35 mm² - rigid || tunnel type terminal bottom) 1-25 mm² - flexible || tunnel type terminal bottom) 1-25 mm² - flexible with ferrule
- Tropicalisation:
- 2 IEC 60068-1
- Circularity Profile:
- N/A
- Halogen Content Performance:
- Halogen free plastic parts product
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Depth:
- 74 mm
- Line Rated Current:
- 63 A EN/IEC 61009-1
- Eu Rohs Directive:
- Compliant with Exemptions
- Net Weight:
- 150 g
- Local Signalling:
- fault indication
- Residual Current Tripping Technology:
- voltage independent
- Range:
- Multi9
- Color:
- Gray
- Mounting Support:
- DIN rail
- Wire Stripping Length:
- 14 mm for bottom connection
- [Ue] Rated Operational Voltage:
- 230/240 V AC 50 Hz
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 3.5-3.5 N.m bottom
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Storage:
- -40-60 °C
- Range Compatibility:
- Multi9 Multi9 C60 C60N || Multi9 Multi9 C60 C60L || Multi9 Multi9 C60 C60H || Multi9 Multi9 C60 C60CTRL
- Product Or Component Type:
- add-on residual current devices
- Pollution Degree:
- 3 IEC 61009
- Relative Humidity:
- 95-95 % 55-55 °C
- Earth-Leakage Protection Class:
- type AC
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kVEN/IEC 61009-1
- 9 Mm Pitches:
- 4
- Electromagnetic Compatibility:
- 8/20 µs impulse withstand, 250 A EN/IEC 61009-1
- [Ui] Rated Insulation Voltage:
- 500 V AC 50 Hz EN/IEC 61009-1
- Poles Description:
- 2P
- Environmental Disclosure:
- ENVPEP1409017EN
- Network Frequency:
- 50 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Electrical Connection To Mcb:
- by screws
- Earth-Leakage Protection Time Delay:
- instantaneous
- Warranty:
- 18 months
- Mounting Mode:
- clip-on
- Ambient Air Temperature For Operation:
- -5-60 °C
- Device Short Name:
- Vigi C60
- Standards:
- EN/IEC 61009-1 || EN/IEC 61009-2-1
- Height:
- 87 mm
- Network Type:
- AC
- Width:
- 36 mm
