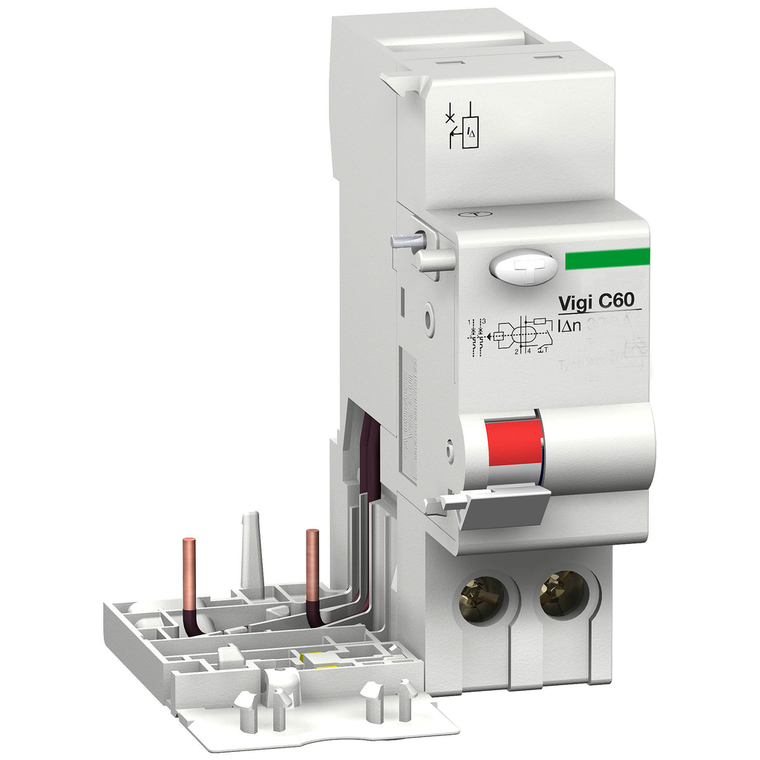

Schneider Electric M9V31263 Multi9 Vigi C60 2P 63A 30Ma A-Si
Schneider Electric
$630.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric M9V31263 Multi9 Vigi C60 2P 63A 30Ma A-Si
This Vigi C60 is a modular add-on residual current devices. It is a 2P and rated current is 63A. The earth leakage protection class is A-SI type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 230VAC or 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 87mm x (D) 74mm. The weight is 150g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 60°C.
- Ambient Air Temperature For Storage:
- -40-60 °C
- Halogen Content Performance:
- Halogen free plastic parts product
- Net Weight:
- 150 g
- 9 Mm Pitches:
- 4
- Sustainable Offer Status:
- Green Premium product
- Height:
- 87 mm
- Range Compatibility:
- Multi9 Multi9 C60 C60N || Multi9 Multi9 C60 C60L || Multi9 Multi9 C60 C60H || Multi9 Multi9 C60 C60CTRL
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Operation:
- -25-60 °C
- Depth:
- 74 mm
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Tightening Torque:
- 3.5-3.5 N.m bottom
- Electromagnetic Compatibility:
- 8/20 µs impulse withstand, 3000 A EN/IEC 61009-1
- [Ui] Rated Insulation Voltage:
- 500 V AC 50 Hz EN/IEC 61009-1
- Circularity Profile:
- N/A
- Product Or Component Type:
- add-on residual current devices
- Tropicalisation:
- 2 IEC 60068-1
- Network Type:
- AC
- Eu Rohs Directive:
- Compliant with Exemptions
- Mounting Mode:
- clip-on
- Wire Stripping Length:
- 14 mm for bottom connection
- Pollution Degree:
- 3 IEC 61009
- Earth-Leakage Protection Time Delay:
- instantaneous
- Earth-Leakage Sensitivity:
- 30 mA EN/IEC 61009-1
- [Ue] Rated Operational Voltage:
- 230/240 V AC 50 Hz
- Relative Humidity:
- 95-95 % 55-55 °C
- Mounting Support:
- DIN rail
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1409017EN
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kVEN/IEC 61009-1
- Earth-Leakage Protection Class:
- type A-SI (Super Immunised)
- Local Signalling:
- fault indication
- Line Rated Current:
- 63 A EN/IEC 61009-1
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Electrical Connection To Mcb:
- by screws
- Warranty:
- 18 months
- Color:
- Gray
- Connections - Terminals:
- tunnel type terminal bottom) 1-35 mm² - rigid || tunnel type terminal bottom) 1-25 mm² - flexible || tunnel type terminal bottom) 1-25 mm² - flexible with ferrule
- Range:
- Multi9
- Device Short Name:
- Vigi C60
- Network Frequency:
- 50 Hz
- Standards:
- EN/IEC 61009-1 || EN/IEC 61009-2-1
- Residual Current Tripping Technology:
- voltage independent
- Poles Description:
- 2P
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width:
- 36 mm
