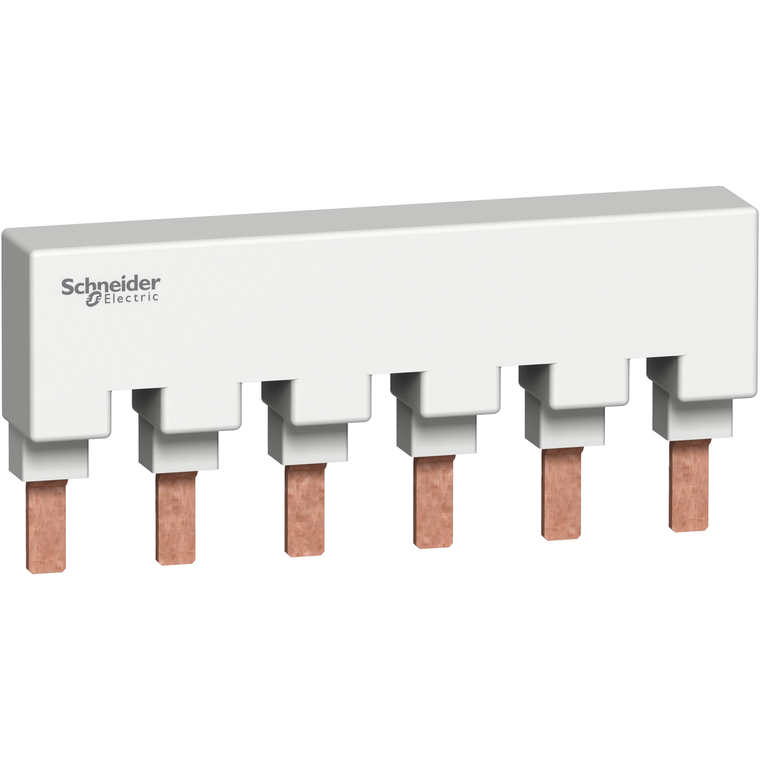

Schneider Electric M9XUP306 Multi9 3P 6 Modules Ul508 Comb Busbar

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9XUP306 Multi9 3P 6 Modules Ul508 Comb Busbar

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9XUP306

UPC:

3.60648E+12

MPN:

Condition:

New

Total Number Of 18 Mm Modules:

6

Color:

Light gray RAL 7035)

Device Presentation:

uncuttable

[Ui] Rated Insulation Voltage:

1000 V AC 50/60 Hz UL 508

Pollution Degree:

3

[Ue] Rated Operational Voltage:

480 V AC 50/60 Hz Ph/Ph || 277 V AC 50/60 Hz Ph/N

Eu Rohs Directive:

Compliant

Mounting Location:

top tunnel type terminals

Number Of Ways:

2 ways 3 L

9 Mm Pitches:

12

Ip Degree Of Protection:

IP20 with end-pieces and tooth covers

Width:

108 mm

Distance Between Way:

54 mm

Reach Free Of Svhc:

Yes

Connector Type:

tooth

Fire Resistance:

960 °C 30 s ) IEC 60695-2-1

Rohs Exemption Information:

Yes

Accessory / Separate Part Category:

connection accessory

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Connection Pitch:

18 mm

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Mercury Free:

Yes

Mounting Mode:

horizontal

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Insulation:

insulated

Lines Description:

3L

Poles Configuration For 1 Way:

1 x 3P

[Ie] Rated Operational Current:

115 A 40 °C

Standards:

UL 508

Toxic Heavy Metal Free:

Yes

Range Compatibility:

Multi9 Multi9 C60BP

Product Or Component Type:

comb busbar

Range:

Multi9

Brochure:

View

Datasheet:

View
