Schneider Electric

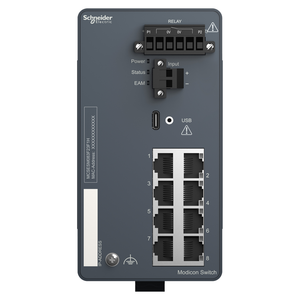

Schneider Electric MCSESM103F2CS1H Modicon Extended Switch 8Tx/2Fx-Sm Harsh

SKU:

MCSESM103F2CS1H

UPC:

3606481813879

MPN:

Condition:

New

Product Certifications:

CE || UL || RCM || DNV || Lloyd's || BV || ATEX

Height:

142.8 mm

Communication Service:

TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection

Communication Port Protocol:

Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP

Product Or Component Type:

Ethernet TCP/IP managed switch

Environmental Disclosure:

ENVPEP2003018EN

Alarm Function:

power supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed

Ethernet Cabling System:

TF switches

Optic Fiber Length:

32.5 km 9/125 µm

Protective Treatment:

conformal coating

Rohs Exemption Information:

Yes

Power Consumption In W:

8 W

Maximum Number Of Switches In Cascade:

unlimited

Ip Degree Of Protection:

IP30

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Standards:

UL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1

Electrical Connection:

removable connector 6 ways power supply

Net Weight:

0.57 kg

Transmission Support Medium:

single mode optical fiber fiber optic || twisted shielded pairs cable CAT 5E copper cable

Circularity Profile:

ENVEOLI2003018EN

Marking:

CE || cULus || RCM

Cybersecurity:

port hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner

Directives:

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Port Ethernet:

100BASE-FX - 2 fiber optic || 10/100BASE-TX - 8 copper cable

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Width:

73 mm

Alarm Output:

1 voltfree contact 1 A

Mounting Support:

35 mm symmetrical DIN rail

Ethernet Service:

configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG

[Us] Rated Supply Voltage:

12...24 V

Warranty:

18 months

Maximum Number Of Switches In A Ring:

50

Maximum Cable Distance Between Devices:

100 m copper cable

Diagnostics Run Time:

signal contact || self test || MAC notification

China Rohs Regulation:

X

Redundancy:

HiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP || dual RSTP

Ambient Air Temperature For Operation:

-40-+70 °C

Product Specific Application:

for severe environments

Supply Voltage Limits:

9.6-32 V DC SELV

Relative Humidity:

1-95 % non-condensing

Function Available:

security status || alarms (Traps) || system information || report

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Concept:

Transparent Ready

Depth:

117.6 mm

Local Signalling:

for P1 P2 power supplies 1 dual colour LED (green/yellow) || for device status 1 dual colour LED (green/red) || for memory key status 1 dual colour LED (green/yellow) || for channel diagnostic 1 dual colour LED (green/yellow)

Integrated Connection Type:

duplex SC fiber optic || shielded RJ45 copper cable

Range Of Product:

Modicon

Sustainable Offer Status:

Green Premium product

Attenuation:

0-16 dB 9/125 µm)

Mercury Free:

Yes
