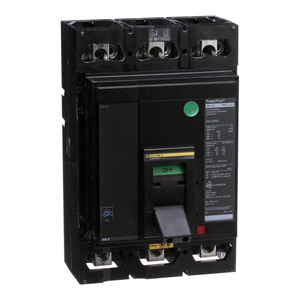

Schneider Electric MGA36450 Molded Case Circuit Breaker 600V 450A

Schneider Electric MGA36450 Molded Case Circuit Breaker 600V 450A

Schneider Electric
SKU:
MGA36450
|
UPC:
785901496212
$8,168.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 450A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Mode:
I-Line bracket)
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Breaking Capacity Code:
G
Trip Unit Technology:
electronic, basic, ET 1.0,
Terminal Identifier:
AL800M23K
Poles Description:
3P
Color:
Black
Continuous Current Rating:
0.8
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Operation:
-25-70 °C
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Device Application:
distribution
Warranty:
18 months
Circularity Profile:
ENVEOLI2206030EN
Width:
8.27 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pvc Free:
Yes
Range:
PowerPact
Mercury Free:
Yes
Net Weight:
29 lb(US)
Eu Rohs Directive:
Compliant with Exemptions
Long Time Pick-Up Adjustment Range:
300...800 A
Utilisation Category:
category A
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Line Rated Current:
450-450 A
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP40
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
8.05 in
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Electrical Connection:
I-Line connection, line || lugs, load
Product Or Component Type:
circuit breaker
Product Name:
PowerPact M
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Network Frequency:
50/60 Hz
Circuit Breaker Application:
HACR rated
Height:
12.86 in
Trip Unit Name:
ET 1.0
Suitability For Isolation:
yes IEC 60947-2
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Environmental Disclosure:
ENVPEP2206030EN
Quantity Per Set:
1
Control Type:
operating handle
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Mounting Height:
9 in
Magnetic Tripping Current:
900-4500 A
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Product Certifications:
UL || CSA || NOM
Pollution Degree:
3 IEC 60947-1
Local Signalling:
1 trip indicator green)
Mounting Support:
bracket
Wire Stripping Length:
25 mm
