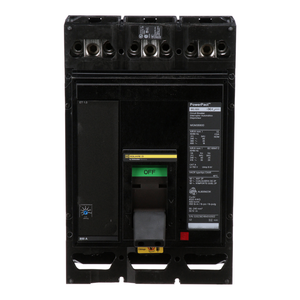

Schneider Electric MGF36800 Molded Case Circuit Breaker 600V 800A

Schneider Electric MGF36800 Molded Case Circuit Breaker 600V 800A

Schneider Electric
SKU:
MGF36800
|
UPC:
785901477020
Availability:
Contact us to confirm availability and lead times.
$14,890.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has a busbar connection. This PowerPacT M, 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Ambient Air Temperature For Storage:
-50-85 °C
Pollution Degree:
3 IEC 60947-1
Circularity Profile:
ENVEOLI1312003EN
Line Rated Current:
800-800 A
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Terminal Identifier:
AL800M23K
Mounting Support:
busbar
Local Signalling:
1 trip indicator green)
Quantity Per Set:
1
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Device Application:
distribution
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Product Name:
PowerPact M
Quality Labels:
CE
Color:
Black
Network Frequency:
50/60 Hz
Warranty:
18 months
Eu Rohs Directive:
Compliant
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Height:
12.86 in
Long Time Pick-Up Adjustment Range:
300...800 A
Width:
8.27 in
Circuit Breaker Application:
HACR rated
Mercury Free:
Yes
Suitability For Isolation:
yes IEC 60947-2
Continuous Current Rating:
0.8
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mounting Mode:
unit mount busbar)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ambient Air Temperature For Operation:
-25-70 °C
Trip Unit Name:
ET 1.0
Pvc Free:
Yes
Utilisation Category:
category A
Wire Stripping Length:
25 mm
Product Or Component Type:
circuit breaker
Electrical Connection:
busbar connection, line || busbar connection, load
Depth:
8.05 in
Breaking Capacity Code:
G
Trip Unit Technology:
electronic, basic, ET 1.0,
Ip Degree Of Protection:
IP40
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Environmental Disclosure:
ENVPEP1312003EN
Net Weight:
29 lb(US)
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Product Certifications:
UL || CSA || NOM
Range:
PowerPact
Poles Description:
3P
Control Type:
operating handle
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Magnetic Tripping Current:
1600-8000 A
