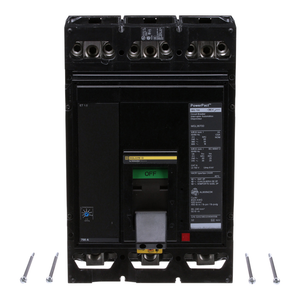

Schneider Electric MGL26700 Molded Case Circuit Breaker 600V 700A

Schneider Electric MGL26700 Molded Case Circuit Breaker 600V 700A

Schneider Electric
SKU:
MGL26700
|
UPC:
785901507611
Availability:
Contact us to confirm availability and lead times.
$7,719.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 700A, 2 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL800M23K
Network Frequency:
50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Sustainable Offer Status:
Green Premium product
Trip Unit Technology:
electronic, basic, ET 1.0,
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Product Name:
PowerPact M
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
8.05 in
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Local Signalling:
1 trip indicator green)
Product Certifications:
UL || CSA || NOM
Device Application:
distribution
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Environmental Disclosure:
ENVPEP2206030EN
Pvc Free:
Yes
Mercury Free:
Yes
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Suitability For Isolation:
yes IEC 60947-2
Ip Degree Of Protection:
IP40
Rohs Exemption Information:
Yes
Color:
Black
Poles Description:
2P
Circularity Profile:
ENVEOLI2206030EN
Electrical Connection:
lugs, load || lugs, line
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Long Time Pick-Up Adjustment Range:
300...800 A
Circuit Breaker Application:
HACR rated
Product Or Component Type:
circuit breaker
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Quantity Per Set:
1
Range:
PowerPact
Net Weight:
29 lb(US)
Magnetic Tripping Current:
1400-7000 A
Height:
12.86 in
Wire Stripping Length:
25 mm
Ambient Air Temperature For Operation:
-25-70 °C
Trip Unit Name:
ET 1.0
Mounting Support:
lug
Line Rated Current:
700-700 A
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Utilisation Category:
category A
Continuous Current Rating:
0.8
Ambient Air Temperature For Storage:
-50-85 °C
Quality Labels:
CE
Pollution Degree:
3 IEC 60947-1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Control Type:
operating handle
Breaking Capacity Code:
G
Warranty:
18 months
Width:
8.27 in
Mounting Mode:
unit mount lug)
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
