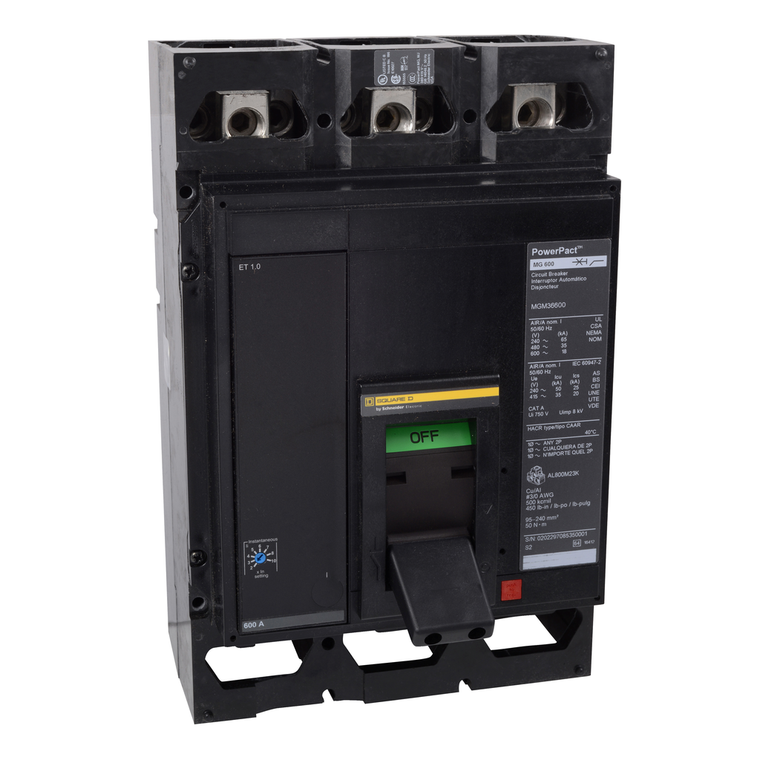

Schneider Electric MGM36600 Molded Case Circuit Breaker 600V 600A

Schneider Electric MGM36600 Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
MGM36600
|
UPC:
7.85902E+11
Availability:
Factory stock
$10,589.82
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on the line side and terminal nuts on the load side. This PowerPacT M, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Product Name:
PowerPact M
Network Frequency:
50/60 Hz
Quantity Per Set:
1
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Wire Stripping Length:
25 mm
Ambient Air Temperature For Storage:
-50-85 °C
Trip Unit Name:
ET 1.0
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Local Signalling:
1 trip indicator green)
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Range:
PowerPact
Device Application:
distribution
Pvc Free:
Yes
Continuous Current Rating:
0.8
Sustainable Offer Status:
Green Premium product
Pollution Degree:
3 IEC 60947-1
Net Weight:
29 lb(US)
Long Time Pick-Up Adjustment Range:
300...800 A
Circuit Breaker Application:
HACR rated
Electrical Connection:
lugs, line || terminal nut, load
Warranty:
18 months
Terminal Identifier:
AL800M23K
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Magnetic Tripping Current:
1200-6000 A
Mounting Support:
lug
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quality Labels:
CE
Ip Degree Of Protection:
IP40
Control Type:
operating handle
Width:
8.27 in
Color:
Black
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Eu Rohs Directive:
Compliant
Height:
12.86 in
Trip Unit Technology:
electronic, basic, ET 1.0,
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Line Rated Current:
600-600 A
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-25-70 °C
Depth:
8.05 in
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Product Certifications:
UL || CSA || NOM
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Environmental Disclosure:
ENVPEP1312003EN
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Mounting Mode:
unit mount lug)
Circularity Profile:
ENVEOLI1312003EN
Product Or Component Type:
circuit breaker
Breaking Capacity Code:
G
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Poles Description:
3P
Suitability For Isolation:
yes IEC 60947-2
Utilisation Category:
category A
Mercury Free:
Yes
