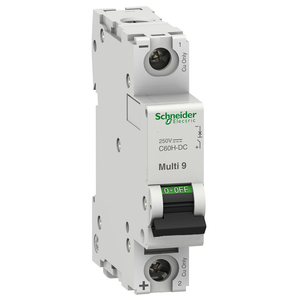

Schneider Electric MGN61510 Circuit-Breaker C60H-Dc 250Vdc 15A 1P C

Schneider Electric MGN61510 Circuit-Breaker C60H-Dc 250Vdc 15A 1P C

Schneider Electric
SKU:
MGN61510
|
UPC:
3.60648E+12
$182.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 1P circuit breaker with 1 protected pole, 15A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to GB 14048.2 standard and 10kA at 220VDC conforming to GB 14048.2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism improves its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is going from 12VDC to 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
Additional Information
Eu Rohs Directive:
Compliant
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mounting Support:
DIN rail
Electrical Durability:
3000 cycles L/R = 2 ms
Ambient Air Temperature For Operation:
-25-70 °C
Color:
Gray
Tightening Torque:
2.5-2.5 N.m top or bottom
9 Mm Pitches:
2
Utilisation Category:
category A EN/IEC 60947-2
Reach Free Of Svhc:
Yes
Wire Stripping Length:
14 mm for top or bottom connection
Limitation Class:
3 EN/IEC 60947-2
Net Weight:
0.128 kg
Network Type:
DC
Provision For Padlocking:
padlockable
Curve Code:
C
Breaking Capacity:
10 kA Icu 220 V DC GB 14048.2 || 6 kA Icu 250 V DC GB 14048.2 || 20 kA Icu 110 V DC GB 14048.2 || 20 kA Icu 110 V DC EN/IEC 60947-2 || 10 kA Icu 220 V DC EN/IEC 60947-2 || 6 kA Icu 250 V DC EN/IEC 60947-2 || 5 kA AIR 12...250 V DC UL 1077
Line Rated Current:
15 A 25 °C
[Ue] Rated Operational Voltage:
12...250 V DC
Overvoltage Category:
IV
Tropicalisation:
2 IEC 60068-2 || 2 GB 14048.2
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Circularity Profile:
N/A
Control Type:
toggle
Mercury Free:
Yes
Range:
Multi9
Locking Options Description:
in position O
Standards:
UL 1077 || GB 14048.2 || EN/IEC 60947-2
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Relative Humidity:
95-95 % 55-55 °C
Product Or Component Type:
miniature circuit-breaker
Toxic Heavy Metal Free:
Yes
Product Name:
Multi9 C60H-DC
Warranty:
18 months
Operating Altitude:
6561.68 ft (2000 m)
[Ui] Rated Insulation Voltage:
500 V DC EN/IEC 60947-2
Local Signalling:
ON/OFF indication
Trip Unit Technology:
thermal-magnetic
Device Application:
distribution
Suitability For Isolation:
yes EN/IEC 60947-2
Mounting Mode:
clip-on
Comb Busbar And Distribution Block Compatibility:
top or bottom standard
Width:
18 mm
Product Certifications:
UR || CCC || IEC
Height:
81 mm
Number Of Protected Poles:
1
Contact Position Indicator:
yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mechanical Durability:
20000 cycles
[Ics] Rated Service Breaking Capacity:
15 kA 75 % GB 14048.2 - 110 V DC || 15 kA 75 % EN/IEC 60947-2 - 110 V DC || 7.5 kA 75 % EN/IEC 60947-2 - 250 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 220 V DC || 7.5 kA 75 % GB 14048.2 - 250 V DC || 4.5 kA 75 % GB 14048.2 - 220 V DC
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Device Short Name:
C60H-DC
Depth:
73 mm
Sustainable Offer Status:
Green Premium product
Pollution Degree:
3 EN/IEC 60947-2
Environmental Disclosure:
ENVPEP2308050EN
Ambient Air Temperature For Storage:
-40-85 °C
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC
Poles Description:
1P
Rohs Exemption Information:
Yes
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tun
Earth-Leakage Protection:
without
