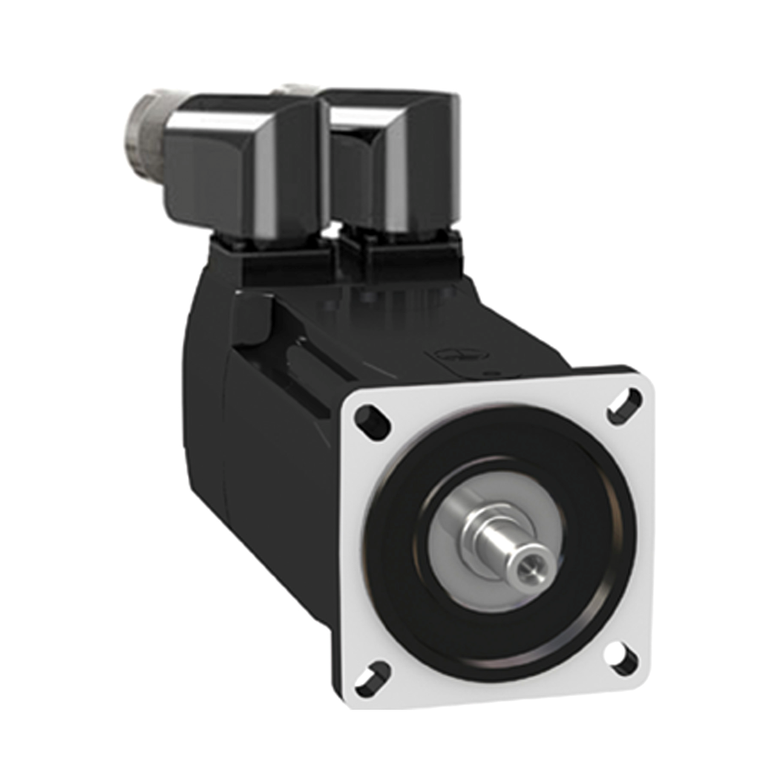

Schneider Electric MH30701P01A2200 Mh3 Motor 070.1 Sgl128 Ang Ip65

SKU:

MH30701P01A2200

UPC:

3606485394787

MPN:

Condition:

New

Rotor Inertia:

0.59 kg.cm²

Stator Resistance:

8.28 Ohm

Stator Inductance:

23.4 mH

Net Weight:

1.6 kg

Device Short Name:

MH3

Continuous Stall Torque:

1.4 N.m, 115...480 V, three phase

Motor Flange Size:

70 mm

Second Shaft:

without second shaft end

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

AC servo motors

Maximum Current Irms:

5.97 A

Nominal Speed:

1250 rpm LXM52 1.75 mA, 115 V, 1 phase || 3000 rpm LXM52 1.75 mA, 230 V, 1 phase || 5500 rpm LXM52 1.72 mA, 400 V, 3 phase || 7000 rpm LXM52 1.7 mA, 480 V, 3 phase || 1250 rpm LXM62 1.75 mA, 115 V, 1 phase || 3000 rpm LXM62 1.75 mA, 230 V, 1 phase ||

Electrical Connection:

rotatable right-angled connectors

[Us] Rated Supply Voltage:

115...480 V

Ip Degree Of Protection:

IP65 standard

Centring Collar Depth:

2.5 mm

Environmental Disclosure:

ENVPEP111002EN

Phase:

three phase

Rohs Exemption Information:

Yes

Pvc Free:

Yes

Stator Electrical Time Constant:

2.8 ms

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Number Of Mounting Holes:

4

Encoder Type:

single turn SinCos Hiperface

Continuous Stall Current:

1.78 A

Shaft Length:

23 mm

Number Of Motor Poles:

10

Circle Diameter Of The Mounting Holes:

82 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Torque Constant:

0.79 N.m/A 120 °C

China Rohs Regulation:

X

Nominal Output Power:

0.18 W, 115 V || 0.42 W, 230 V || 0.75 W, 400 V || 0.93 W, 480 V

Holding Brake:

without

Centring Collar Diameter:

60 mm

Circularity Profile:

N/A

Mounting Support:

international standard flange

Length:

122 mm

Shaft End:

smooth shaft

Continuous Power:

930 W

Nominal Torque:

1.38 N.m LXM52 1.75 mA, 115 V, 1 phase || 1.34 N.m LXM52 1.75 mA, 230 V, 1 phase || 1.3 N.m LXM52 1.72 mA, 400 V, 3 phase || 1.27 N.m LXM52 1.7 mA, 480 V, 3 phase || 1.38 N.m LXM62 1.75 mA, 115 V, 1 phase || 1.34 N.m LXM62 1.75 mA, 230 V, 1 phase ||

Type Of Cooling:

natural convection

Mercury Free:

Yes

Back Emf Constant:

50.72 V/krpm

Mounting Holes Diameter:

5.5 mm

Speed Feedback Resolution:

128 periods

Maximum Mechanical Speed:

8000 rpm

Shaft Diameter:

11 mm

Maximum Radial Force Fr:

660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm

Peak Stall Torque:

4.2 N.m, 115...480 V, three phase

Range Compatibility:

PacDrive 3
