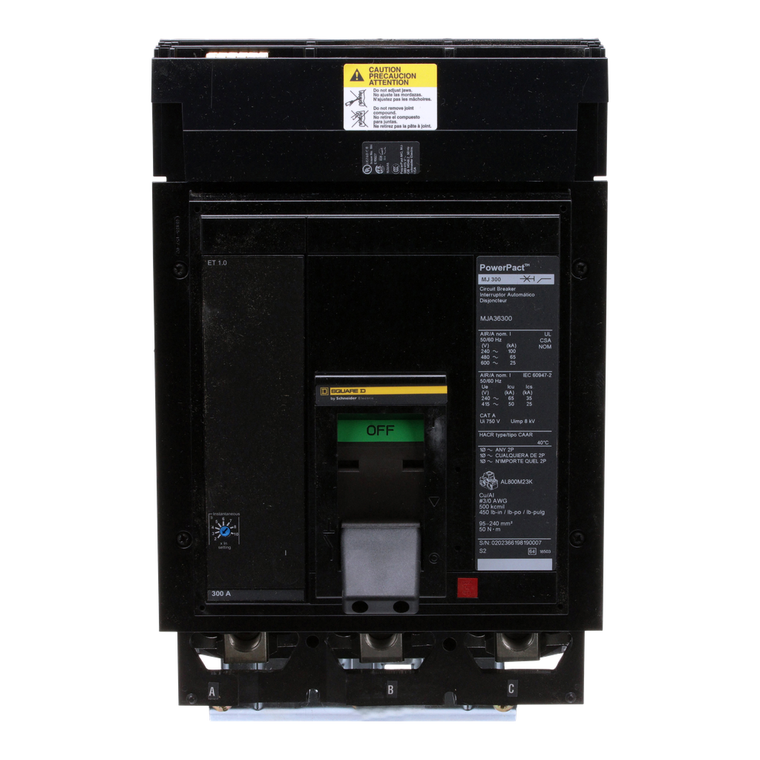

Schneider Electric MJA36300 Molded Case Circuit Breaker 600V 300A

Schneider Electric MJA36300 Molded Case Circuit Breaker 600V 300A

Schneider Electric
SKU:
MJA36300
|
UPC:
785901689560
Availability:
Contact us to confirm availability and lead times.
$9,929.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 300A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Device Application:
distribution
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Local Signalling:
1 trip indicator green)
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Sustainable Offer Status:
Green Premium product
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Pvc Free:
Yes
Breaking Capacity Code:
J
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Utilisation Category:
category A
Product Name:
PowerPact M
Electrical Connection:
I-Line connection, line || lugs, load
Mercury Free:
Yes
Control Type:
operating handle
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Mounting Height:
9 in
Mounting Support:
bracket
Pollution Degree:
3 IEC 60947-1
Color:
Black
Trip Unit Name:
ET 1.0
Environmental Disclosure:
ENVPEP2206030EN
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Wire Stripping Length:
25 mm
Eu Rohs Directive:
Compliant with Exemptions
Range:
PowerPact
Mounting Mode:
I-Line bracket)
Rohs Exemption Information:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
circuit breaker
Ambient Air Temperature For Operation:
-25-70 °C
Line Rated Current:
300-300 A
Quantity Per Set:
1
Width:
8.27 in
Continuous Current Rating:
0.8
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Network Frequency:
50/60 Hz
Warranty:
18 months
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Storage:
-50-85 °C
Circularity Profile:
ENVEOLI2206030EN
Trip Unit Technology:
electronic, basic, ET 1.0,
Net Weight:
29 lb(US)
Product Certifications:
UL || CSA || NOM
Suitability For Isolation:
yes IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Long Time Pick-Up Adjustment Range:
300...800 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Quality Labels:
CE
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Depth:
8.05 in
Poles Description:
3P
Height:
12.86 in
Magnetic Tripping Current:
600-3000 A
Terminal Identifier:
AL800M23K
Ip Degree Of Protection:
IP40
