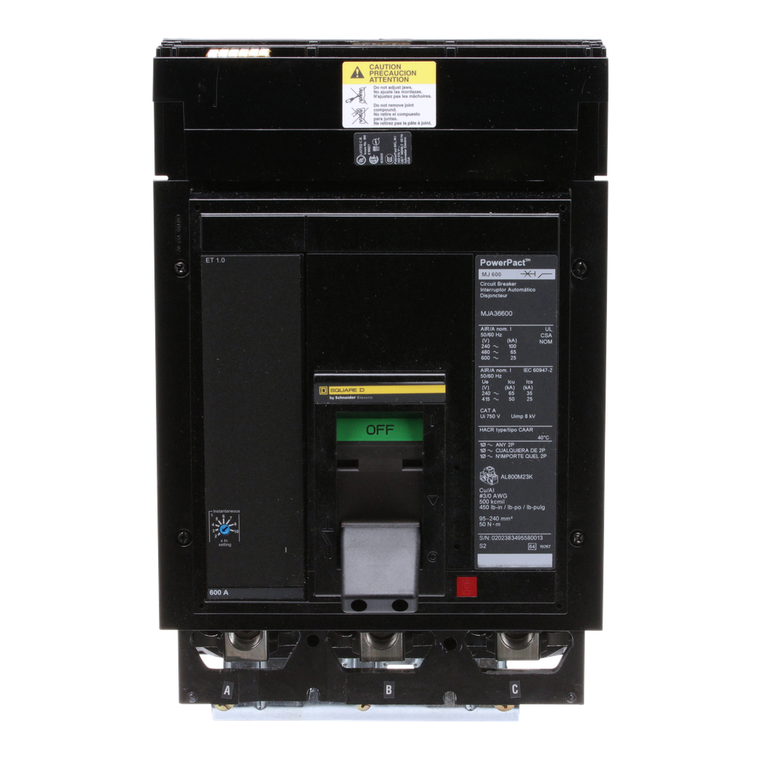

Schneider Electric MJA36600 Molded Case Circuit Breaker 600V 600A

Schneider Electric MJA36600 Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
MJA36600
|
UPC:
785901504757
Availability:
Factory stock
$9,929.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Utilisation Category:
category A
Local Signalling:
1 trip indicator green)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Sustainable Offer Status:
Green Premium product
Color:
Black
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Ambient Air Temperature For Operation:
-25-70 °C
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Magnetic Tripping Current:
1200-6000 A
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Wire Stripping Length:
25 mm
Control Type:
operating handle
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Ambient Air Temperature For Storage:
-50-85 °C
Width:
8.27 in
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Quantity Per Set:
1
Device Application:
distribution
Depth:
8.05 in
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Mounting Support:
bracket
Mounting Mode:
I-Line bracket)
Electrical Connection:
I-Line connection, line || lugs, load
Network Frequency:
50/60 Hz
Trip Unit Technology:
electronic, basic, ET 1.0,
Pvc Free:
Yes
Pollution Degree:
3 IEC 60947-1
Product Or Component Type:
circuit breaker
Rohs Exemption Information:
Yes
Long Time Pick-Up Adjustment Range:
300...800 A
Eu Rohs Directive:
Compliant with Exemptions
Suitability For Isolation:
yes IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
600-600 A
Circularity Profile:
ENVEOLI2206030EN
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Terminal Identifier:
AL800M23K
Continuous Current Rating:
0.8
Warranty:
18 months
Poles Description:
3P
Circuit Breaker Application:
HACR rated
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Breaking Capacity Code:
J
Height:
12.86 in
Trip Unit Name:
ET 1.0
Range:
PowerPact
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Height:
9 in
Quality Labels:
CE
Environmental Disclosure:
ENVPEP2206030EN
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Product Name:
PowerPact M
Net Weight:
29 lb(US)
Ip Degree Of Protection:
IP40
Product Certifications:
UL || CSA || NOM
