Schneider Electric NLGL36600U33X Molded Case Circuit Breaker, 600V 600A
Schneider Electric
Schneider Electric MJA36600YP Molded Case Circuit Breaker 600V 600A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

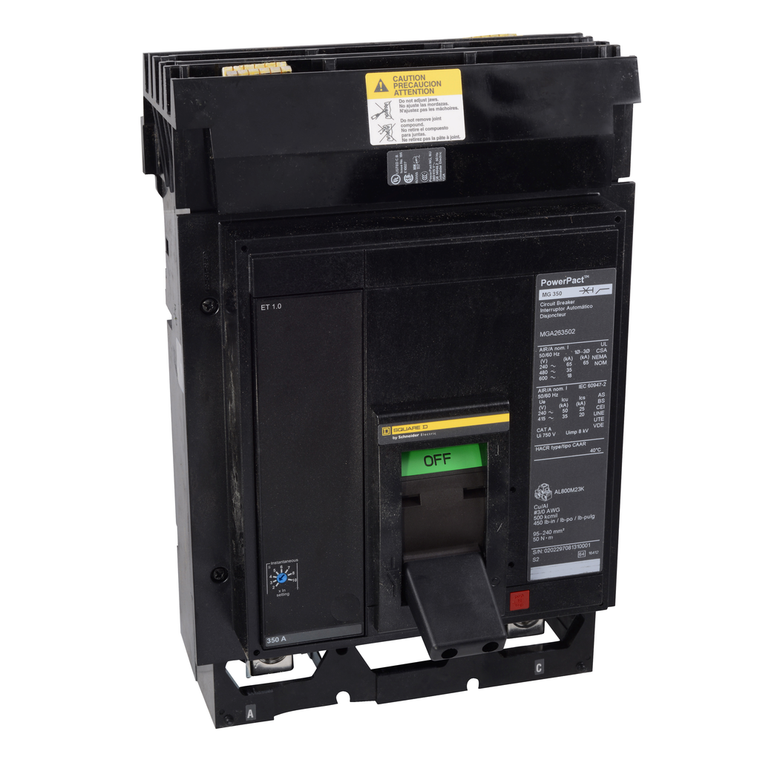

PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed handle padlocking device, off or on. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
- Poles Description:
- 3P
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz UL 489
- Pollution Degree:
- 3 IEC 60947-1
- Net Weight:
- 29 lb(US)
- Eu Rohs Directive:
- Compliant with Exemptions
- Accessory / Separate Part Type:
- padlocking device ON and OFF end
- Mounting Mode:
- I-Line bracket)
- Pvc Free:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 300...800 A
- Trip Unit Technology:
- electronic, basic, ET 1.0,
- Mounting Height:
- 9 in
- Quality Labels:
- CE
- Breaking Capacity:
- AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Magnetic Tripping Current:
- 1200-6000 A
- Rohs Exemption Information:
- Yes
- Depth:
- 8.05 in
- Environmental Disclosure:
- ENVPEP2206030EN
- Terminal Identifier:
- AL800M23K
- Tightening Torque:
- 50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
- Suitability For Isolation:
- yes IEC 60947-2
- Ambient Air Temperature For Operation:
- -25-70 °C
- Continuous Current Rating:
- 0.8
- Line Rated Current:
- 600-600 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
- Wire Stripping Length:
- 25 mm
- Electrical Connection:
- I-Line connection, line || lugs, load
- Ambient Air Temperature For Storage:
- -50-85 °C
- Warranty:
- 18 months
- Device Application:
- distribution
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Trip Unit Name:
- ET 1.0
- Local Signalling:
- 1 trip indicator green)
- Product Or Component Type:
- circuit breaker
- Color:
- Black
- Height:
- 12.86 in
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Breaking Capacity Code:
- J
- Mounting Support:
- bracket
- Network Frequency:
- 50/60 Hz
- Mercury Free:
- Yes
- Product Name:
- PowerPact M
- Circuit Breaker Application:
- HACR rated
- Width:
- 8.27 in
- Ip Degree Of Protection:
- IP40
- Product Certifications:
- UL || CSA || NOM
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Range:
- PowerPact
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Awg Gauge:
- 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
- Control Type:
- operating handle
- Circularity Profile:
- ENVEOLI2206030EN
- Utilisation Category:
- category A
- Quantity Per Set:
- 1
- Catalog:
- View
- Datasheet:
- View
