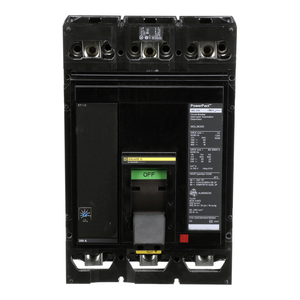

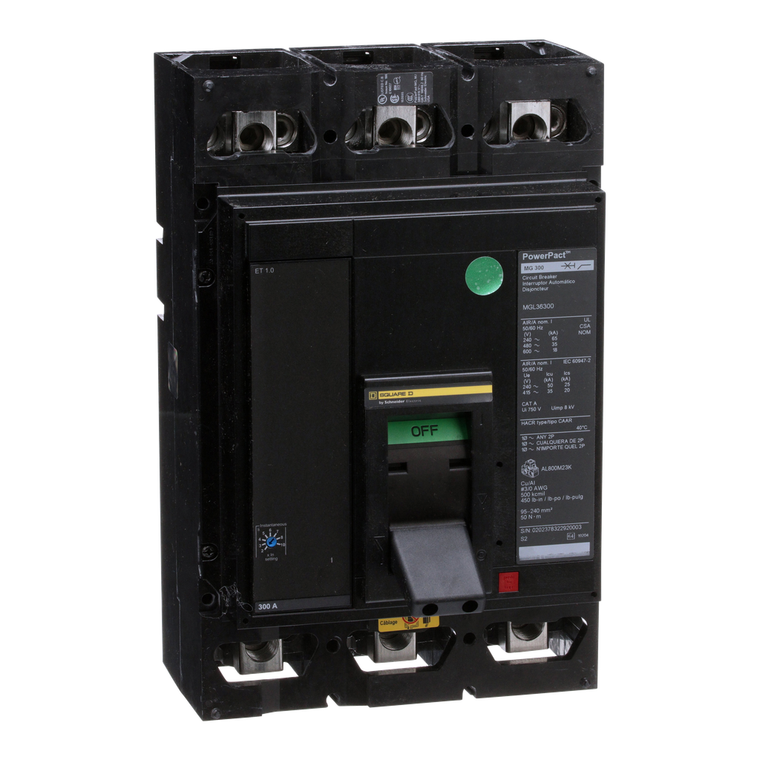

Schneider Electric MJL36350 Molded Case Circuit Breaker 600V 350A
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 350A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Range:
- PowerPact
- Mounting Mode:
- unit mount lug)
- Wire Stripping Length:
- 25 mm
- Warranty:
- 18 months
- Utilisation Category:
- category A
- Electrical Connection:
- lugs, load || lugs, line
- Magnetic Tripping Current:
- 700-3500 A
- Circularity Profile:
- ENVEOLI2206030EN
- Mounting Support:
- lug
- Line Rated Current:
- 350-350 A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
- Pollution Degree:
- 3 IEC 60947-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Terminal Identifier:
- AL800M23K
- Eu Rohs Directive:
- Compliant with Exemptions
- Rohs Exemption Information:
- Yes
- Trip Unit Name:
- ET 1.0
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Control Type:
- operating handle
- Device Application:
- distribution
- Product Certifications:
- UL || CSA || NOM
- Trip Unit Technology:
- electronic, basic, ET 1.0,
- Ip Degree Of Protection:
- IP40
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Name:
- PowerPact M
- Mercury Free:
- Yes
- Tightening Torque:
- 50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Width:
- 8.27 in
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz UL 489
- Awg Gauge:
- 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
- Pvc Free:
- Yes
- Net Weight:
- 29 lb(US)
- Quantity Per Set:
- 1
- Continuous Current Rating:
- 0.8
- Sustainable Offer Status:
- Green Premium product
- [Ics] Rated Service Breaking Capacity:
- 35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Local Signalling:
- 1 trip indicator green)
- Quality Labels:
- CE
- Depth:
- 8.05 in
- Ambient Air Temperature For Operation:
- -25-70 °C
- Poles Description:
- 3P
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Breaking Capacity:
- AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 300...800 A
- Product Or Component Type:
- circuit breaker
- Color:
- Black
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity Code:
- J
- Network Frequency:
- 50/60 Hz
- Height:
- 12.86 in
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
- Environmental Disclosure:
- ENVPEP2206030EN
- Circuit Breaker Application:
- HACR rated
- Ambient Air Temperature For Storage:
- -50-85 °C
