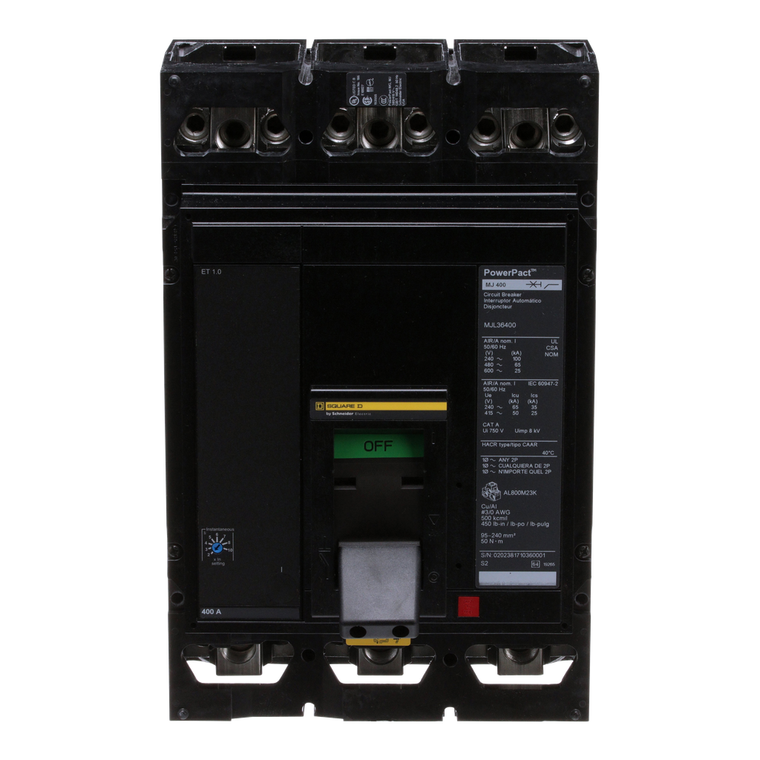

Schneider Electric MJL36400 Molded Case Circuit Breaker 600V 400A

Schneider Electric MJL36400 Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
MJL36400
|
UPC:
785901701828
Availability:
Factory stock
$8,830.45
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Suitability For Isolation:
yes IEC 60947-2
Breaking Capacity Code:
J
Mounting Support:
lug
Environmental Disclosure:
ENVPEP2206030EN
Rohs Exemption Information:
Yes
Product Or Component Type:
circuit breaker
Range:
PowerPact
Long Time Pick-Up Adjustment Range:
300...800 A
Control Type:
operating handle
Electrical Connection:
lugs, load || lugs, line
Network Frequency:
50/60 Hz
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Pollution Degree:
3 IEC 60947-1
Mercury Free:
Yes
Trip Unit Name:
ET 1.0
Product Name:
PowerPact M
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Depth:
8.05 in
Utilisation Category:
category A
Trip Unit Technology:
electronic, basic, ET 1.0,
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mounting Mode:
unit mount lug)
Product Certifications:
UL || CSA || NOM
Width:
8.27 in
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Ambient Air Temperature For Operation:
-25-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Magnetic Tripping Current:
800-4000 A
Device Application:
distribution
Terminal Identifier:
AL800M23K
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Quantity Per Set:
1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Circuit Breaker Application:
HACR rated
Circularity Profile:
ENVEOLI2206030EN
Sustainable Offer Status:
Green Premium product
Line Rated Current:
400-400 A
Wire Stripping Length:
25 mm
Height:
12.86 in
Poles Description:
3P
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Local Signalling:
1 trip indicator green)
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Color:
Black
Pvc Free:
Yes
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Net Weight:
29 lb(US)
Quality Labels:
CE
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Continuous Current Rating:
0.8
Ip Degree Of Protection:
IP40
Eu Rohs Directive:
Compliant with Exemptions
