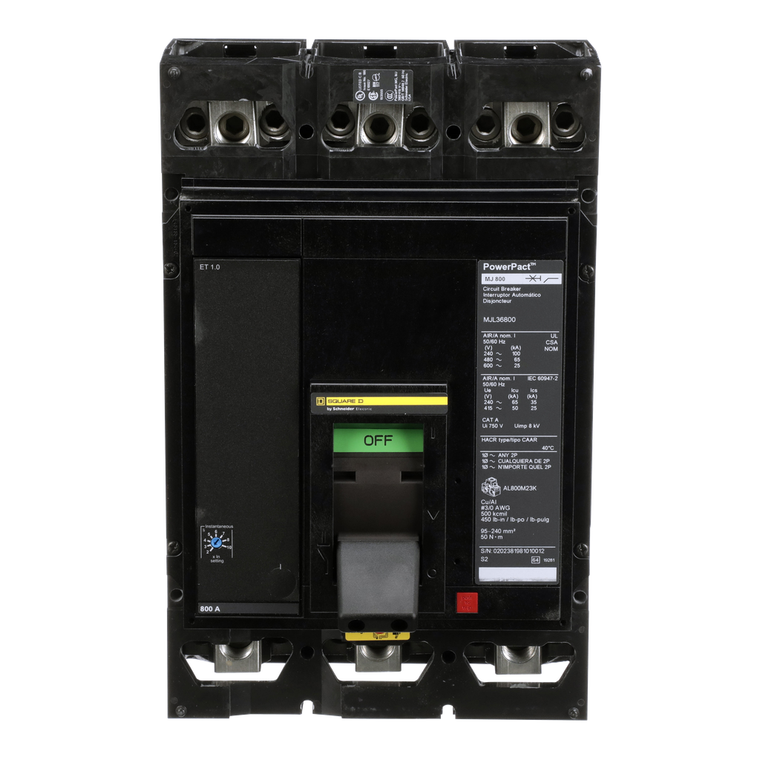

Schneider Electric MJL36800 Molded Case Circuit Breaker 600V 800A

Schneider Electric MJL36800 Molded Case Circuit Breaker 600V 800A

Schneider Electric
SKU:
MJL36800
|
UPC:
785901655398
Availability:
Factory stock
$11,095.95
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Environmental Disclosure:
ENVPEP2206030EN
Electrical Connection:
lugs, load || lugs, line
Circularity Profile:
ENVEOLI2206030EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ip Degree Of Protection:
IP40
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Circuit Breaker Application:
HACR rated
Magnetic Tripping Current:
1600-8000 A
Utilisation Category:
category A
Product Name:
PowerPact M
Sustainable Offer Status:
Green Premium product
Poles Description:
3P
Product Certifications:
UL || CSA || NOM
Ambient Air Temperature For Operation:
-25-70 °C
Mounting Mode:
unit mount lug)
Mounting Support:
lug
Warranty:
18 months
Breaking Capacity Code:
J
Depth:
8.05 in
Pollution Degree:
3 IEC 60947-1
Rohs Exemption Information:
Yes
Color:
Black
Ambient Air Temperature For Storage:
-50-85 °C
Terminal Identifier:
AL800M23K
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Device Application:
distribution
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Type:
operating handle
Local Signalling:
1 trip indicator green)
Wire Stripping Length:
25 mm
Quantity Per Set:
1
Net Weight:
29 lb(US)
Suitability For Isolation:
yes IEC 60947-2
Line Rated Current:
800-800 A
Network Frequency:
50/60 Hz
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Height:
12.86 in
Product Or Component Type:
circuit breaker
Trip Unit Technology:
electronic, basic, ET 1.0,
Continuous Current Rating:
0.8
Trip Unit Name:
ET 1.0
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Width:
8.27 in
Range:
PowerPact
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Quality Labels:
CE
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Mercury Free:
Yes
Pvc Free:
Yes
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
Long Time Pick-Up Adjustment Range:
300...800 A
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
