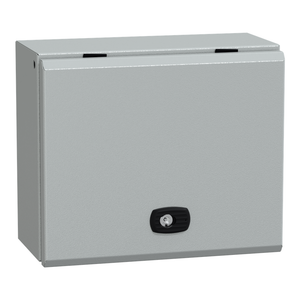

Schneider Electric NSYS3DB25515 S3Db Terminal Enc. H250Xw500Xd150
Schneider Electric
$138.29
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Spacial S3DB compact enclosure. H is250xW is500xD is150 mm. For equipping with terminal. No mounting plate or cable gland included. 1 front face/door. Wall mounting install (Horz/Vert). Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Certifications is BV, CUL, DNV, GL, LR, UL.
- Product Certifications:
- cUL || BV || GL || DNV || LR || UL
- Installation Accessory Type:
- wall-mounting || horizontal or vertical position
- Surface Finish:
- epoxy-polyester powder
- Product Destination:
- for equipping with terminal
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection:
- IP66 IEC 60529
- Mounting Plate Description:
- without mounting plate
- Door Type:
- Solid
- Net Weight:
- 5.218 kg
- Type Of Gland Plate:
- without gland plate
- Standards:
- IEC 62208
- Enclosure Nominal Depth:
- 150 mm
- Product Name:
- Spacial S3DB
- Accessibility For Operation:
- front
- Device Application:
- terminal application
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Warranty:
- 18 months
- Lock Type:
- 3 mm double-bar lock
- Nema Degree Of Protection:
- NEMA 4X/13
- Variant Particularity:
- gutter-shaped front rail double sheet thickness || single piece body
- Material:
- steel
- Number Of Doors:
- front face 1
- Enclosure Nominal Width:
- 500 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Removable Parts:
- door by hinges
- Color:
- Gray RAL 7035)
- Device Composition:
- 1 body || 1 door || 1 lock
- Environmental Disclosure:
- ENVPEP100104EN
- Mercury Free:
- Yes
- Door Opening Side:
- reversible 180 °)
- Sustainable Offer Status:
- Green Premium product
- Ik Degree Of Protection:
- IK10 IEC 62262
- Enclosure Nominal Height:
- 250 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range:
- Spacial
- Product Or Component Type:
- compact enclosure
