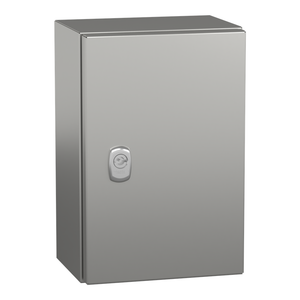

Schneider Electric NSYS3X3215 S3X 304L 300X200X150

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3X3215 S3X 304L 300X200X150

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3X3215

UPC:

3.60648E+12

MPN:

Condition:

New

Device Composition:

1 body || 1 lock door || 1 door

Door Opening Side:

reversible 120 °)

Product Certifications:

UL 508 type A || CAN/CSA 22

Device Application:

multi-purpose

Product Name:

Spacial S3X

Environmental Characteristic:

corrosive || specific hygiene

Environmental Disclosure:

ENVPEP2109018EN

Removable Parts:

door by hinges

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Type Of Gland Plate:

without gland plate

Installation Accessory Type:

wall-mounting

Enclosure Nominal Width:

200 mm

Enclosure Nominal Height:

300 mm

Accessibility For Operation:

front

Ik Degree Of Protection:

IK10 IEC 62262

Warranty:

18 months

Material:

body and door stainless steel 304L || lock zamak || hinge stainless steel

Net Weight:

3.08 kg

Range:

Spacial

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Plate Description:

without mounting plate

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP66 IEC 60529

Standards:

IEC 62208

Lock Type:

3 mm double-bar lock

Mercury Free:

Yes

Enclosure Nominal Depth:

150 mm

Sustainable Offer Status:

Green Premium product

Number Of Doors:

front face 1

Circularity Profile:

N/A

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Door Type:

Solid

Product Or Component Type:

compact enclosure

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Brochure:

View

Catalog:

View

Datasheet:

View
