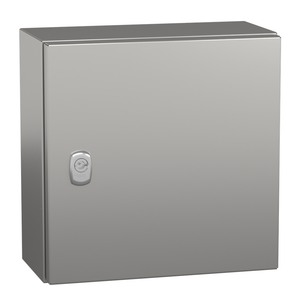

Schneider Electric NSYS3X3315H S3X 316L 300X300X150

SKU:

NSYS3X3315H

UPC:

3606480155086

MPN:

Condition:

New

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Range:

Spacial

Circularity Profile:

N/A

Number Of Doors:

front face 1

Device Composition:

1 body || 1 lock door || 1 door

Net Weight:

4.038 kg

Environmental Characteristic:

corrosive || specific hygiene

Material:

lock zamak || hinge stainless steel || body and door stainless steel 316L

Warranty:

18 months

Mercury Free:

Yes

Type Of Gland Plate:

without gland plate

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

CAN/CSA 22 || UL 508 type A

Enclosure Nominal Width:

300 mm

Door Type:

Solid

Lock Type:

3 mm double-bar lock

Removable Parts:

door by hinges

Enclosure Nominal Depth:

150 mm

Standards:

IEC 62208

Mounting Plate Description:

without mounting plate

Enclosure Nominal Height:

300 mm

Ik Degree Of Protection:

IK10 IEC 62262

Device Application:

multi-purpose

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Ip Degree Of Protection:

IP66 IEC 60529

Rohs Exemption Information:

Yes

Door Opening Side:

reversible 120 °)

Installation Accessory Type:

wall-mounting

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP2109018EN

Accessibility For Operation:

front

Product Or Component Type:

compact enclosure

Product Name:

Spacial S3X

Datasheet:

View
