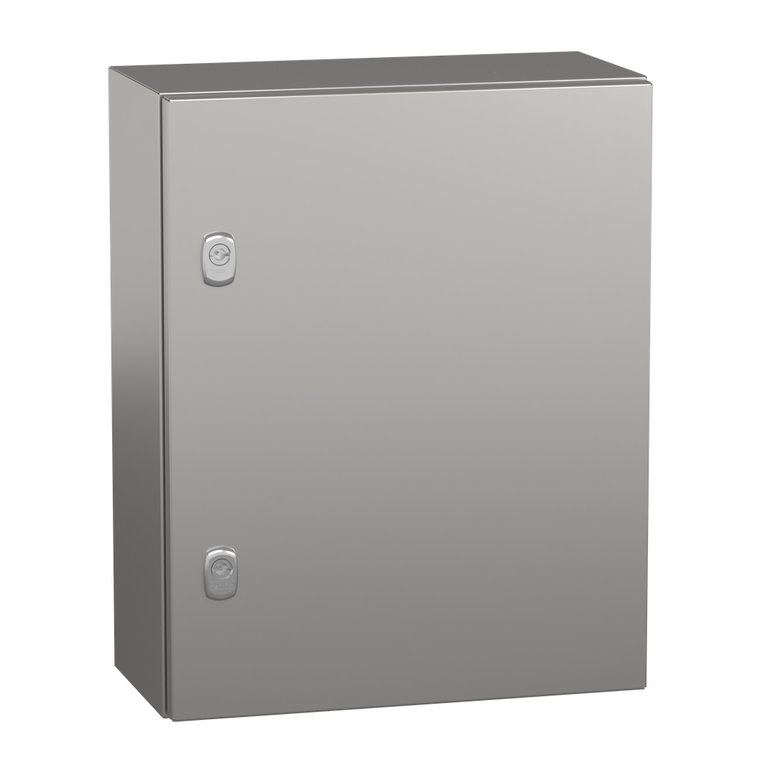

Schneider Electric NSYS3X5420 S3X 304L 500X400X200

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3X5420 S3X 304L 500X400X200

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3X5420

UPC:

3606480155185

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Standards:

IEC 62208

Environmental Characteristic:

corrosive || specific hygiene

Mounting Plate Description:

without mounting plate

Device Composition:

1 body || 1 lock door || 1 door

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Application:

multi-purpose

Ip Degree Of Protection:

IP66 IEC 60529

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Range:

Spacial

Material:

body and door stainless steel 304L || lock zamak || hinge stainless steel

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Environmental Disclosure:

ENVPEP2109018EN

Door Type:

Solid

Removable Parts:

door by hinges

Door Opening Side:

reversible 120 °)

Warranty:

18 months

Enclosure Nominal Depth:

200 mm

Product Name:

Spacial S3X

Number Of Doors:

front face 1

Product Certifications:

CAN/CSA 22 || UL 508 type A

Lock Type:

2 points lock, 3 mm double-bar

Type Of Gland Plate:

without gland plate

Enclosure Nominal Width:

400 mm

Accessibility For Operation:

front

Circularity Profile:

N/A

Ik Degree Of Protection:

IK10 IEC 62262

Installation Accessory Type:

wall-mounting

Product Or Component Type:

compact enclosure

Net Weight:

8.05 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Height:

500 mm

Brochure:

View

Catalog:

View

Datasheet:

View
