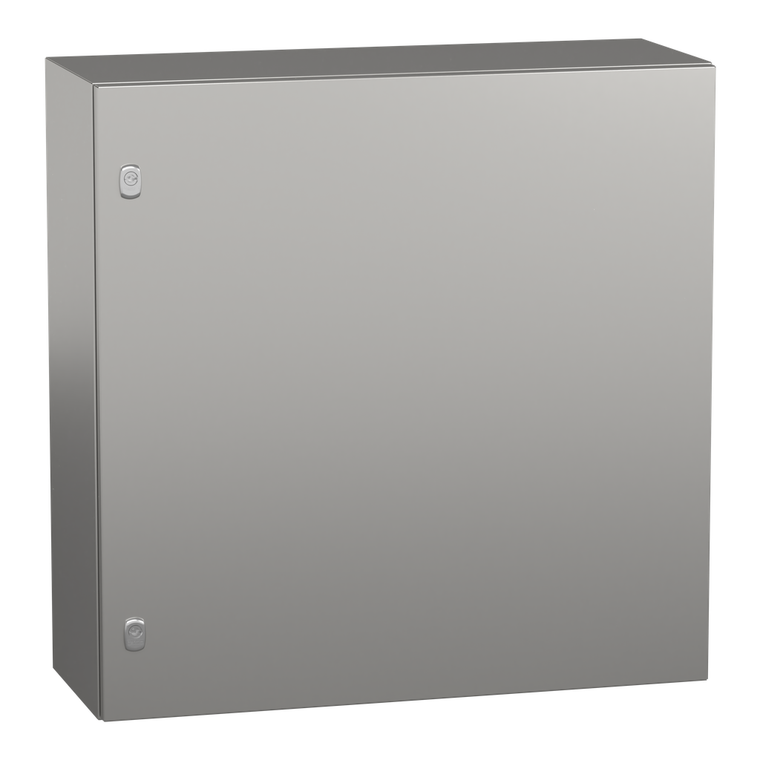

Schneider Electric NSYS3X8830H S3X 316L 800X800X300

SKU:

NSYS3X8830H

UPC:

3606480155338

MPN:

Condition:

New

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Warranty:

18 months

Ik Degree Of Protection:

IK10 IEC 62262

Door Type:

Solid

Product Name:

Spacial S3X

Accessibility For Operation:

front

Rohs Exemption Information:

Yes

Environmental Characteristic:

specific hygiene || corrosive

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP2109018EN

Product Certifications:

UL 508 type A || CAN/CSA 22

Ip Degree Of Protection:

IP66 IEC 60529

Net Weight:

32 kg

Device Application:

multi-purpose

Door Opening Side:

reversible 120 °)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Composition:

1 body || 1 door || 2 lock door || 2 perforated vertical profile drilled door

Installation Accessory Type:

wall-mounting

Number Of Doors:

front face 1

Enclosure Nominal Depth:

300 mm

Range:

Spacial

Circularity Profile:

N/A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Width:

800 mm

Lock Type:

2 points lock, 3 mm double-bar

Mercury Free:

Yes

Standards:

IEC 62208

Enclosure Nominal Height:

800 mm

Product Or Component Type:

compact enclosure

Type Of Gland Plate:

without gland plate

Mounting Plate Description:

without mounting plate

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Removable Parts:

door by hinges

Material:

lock zamak || hinge stainless steel || body and door stainless steel 316L
