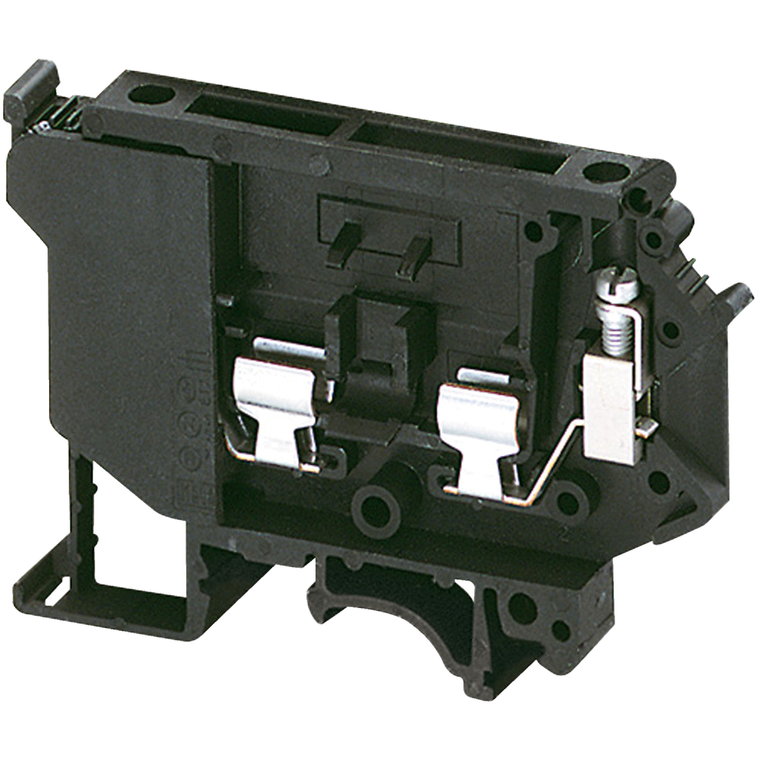

Schneider Electric NSYTRV42SF5LD Screw Terminal, Fused, For 5X20/25/30Mm
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).
- Fuse Size:
- 5 x 20 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Tool Type:
- connection screwdriver || disconnection screwdriver
- Circularity Profile:
- N/A
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Terminal Block Level:
- 1
- Cable Cross Section:
- 0.2-4 mm², flexible without cable end || 0.2-4 mm², solid
- Product Name:
- Linergy TR
- Number Of Terminals:
- 2
- Product Compatibility:
- Spacial enclosures
- Flame Retardance:
- V0 0.8 mm UL 94
- Width:
- 8.2 mm
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Number Of Measurement Input:
- 0
- Nominal Cross Section:
- 4 mm²
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Quantity Per Set:
- set of 50
- Provided Equipment:
- 12...30 V light indicator
- Mercury Free:
- Yes
- Product Or Component Type:
- terminal block
- Mounting Mode:
- clip-on
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Dielectric Constant:
- 3.7 at 1 MHz
- Dielectric Strength:
- 1000 V IEC 60243-1
- Range:
- Linergy
- Terminal Block Type:
- fused disconnect
- Connections - Terminals:
- 1 x screw terminal upstream || 1 x screw terminal downstream
- Wire Stripping Length:
- 8 mm
- Line Rated Current:
- 6.3-6.3 A EN/IEC 60947-7-1 || 12-12 A cURus || 6.3-6.3 A CSA
- Warranty:
- 18 months
- Tightening Torque:
- 0.5-0.8 N.m
- Rohs Exemption Information:
- Yes
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Net Weight:
- 20 g
- [Ue] Rated Operational Voltage:
- 500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
- Color:
- Black
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- EAC || CSA || cURus
- Halogen Content Performance:
- Halogen free plastic parts product
- Connection Position:
- sideways
- Height:
- 56.5 mm
- Device Short Name:
- TRV
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Material:
- polyamide 6/6: insulating case
- Environmental Disclosure:
- ENVPEP2309018EN
- Length:
- 72.5 mm
- Catalog:
- View
- Datasheet:
- View
-
-
-
