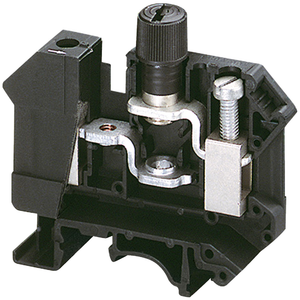

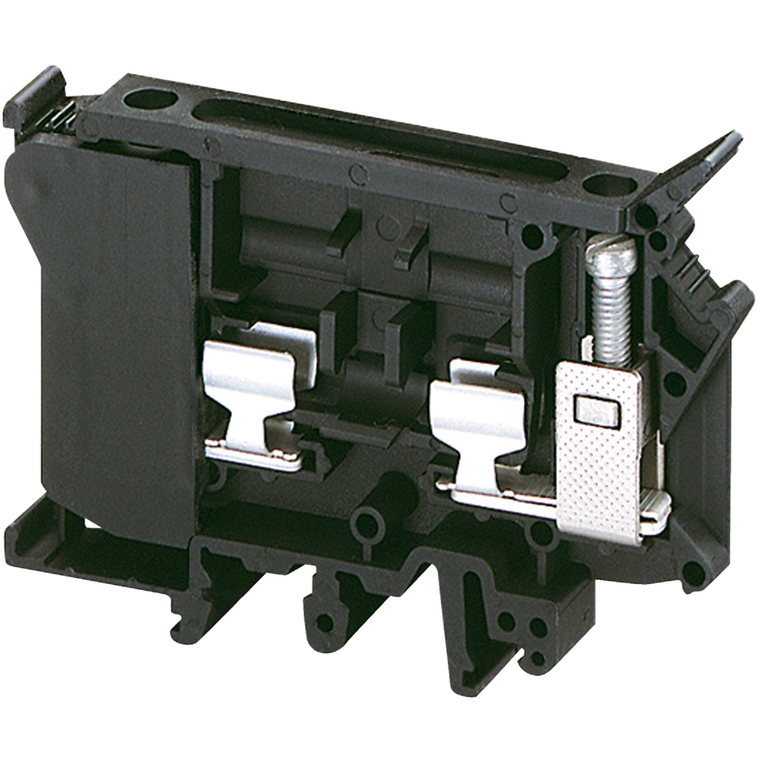

Schneider Electric NSYTRV42SF6 Screw Terminal, Fused, For 6,3X32Mm Cart
Schneider Electric
$14.40
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a UL rating of 10 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 8 AWG. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.38 inches tall, 0.40 inches wide and 3.11 inches deep. Each wieghs 0.71 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive:
- Compliant
- Tool Type:
- connection screwdriver || disconnection screwdriver
- Surface Resistance:
- 1000 MOhm IEC 60093 || 1000 MOhm VDE 0303-T30
- Number Of Terminals:
- 2
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Color:
- Black
- Width:
- 10.2 mm
- Line Rated Current:
- 10-10 A EN/IEC 60947-7-1 || 10-10 A cURus || 10-10 A CSA
- Circularity Profile:
- N/A
- Connections - Terminals:
- 1 x screw terminal upstream || 1 x screw terminal downstream
- Resistivity:
- 10000 â¦.cm IEC 60093 || 10000 â¦.cm VDE 0303-T30
- Terminal Block Level:
- 1
- Material:
- polyamide 6/6: insulating case
- Mercury Free:
- Yes
- Quantity Per Set:
- set of 50
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Terminal Block Type:
- fused disconnect
- Wire Stripping Length:
- 9 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Cable Cross Section:
- 0.2-4 mm², flexible without cable end || 0.2-4 mm², flexible with cable end || 0.5-16 mm², solid with cable end
- Dielectric Constant:
- 3.7 at 1 MHz
- Fuse Size:
- 6.3 x 32 mm
- Device Short Name:
- TRV
- Product Certifications:
- CSA || EAC || cURus
- Tightening Torque:
- 0.6-0.8 N.m
- Dielectric Strength:
- 1000 V IEC 60243-1
- Height:
- 60.5 mm
- Toxic Heavy Metal Free:
- Yes
- [Ue] Rated Operational Voltage:
- 500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
- Product Compatibility:
- Spacial enclosures
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 34.2 g
- Number Of Measurement Input:
- 0
- Flame Retardance:
- V0 0.8 mm UL 94
- Halogen Content Performance:
- Halogen free plastic parts product
- Range:
- Linergy
- Device Application:
- protection
- Product Name:
- Linergy TR
- Length:
- 79 mm
- Connection Position:
- sideways
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Product Or Component Type:
- terminal block
- Mounting Mode:
- clip-on
- Nominal Cross Section:
- 16 mm²
- Environmental Disclosure:
- ENVPEP2309018EN
