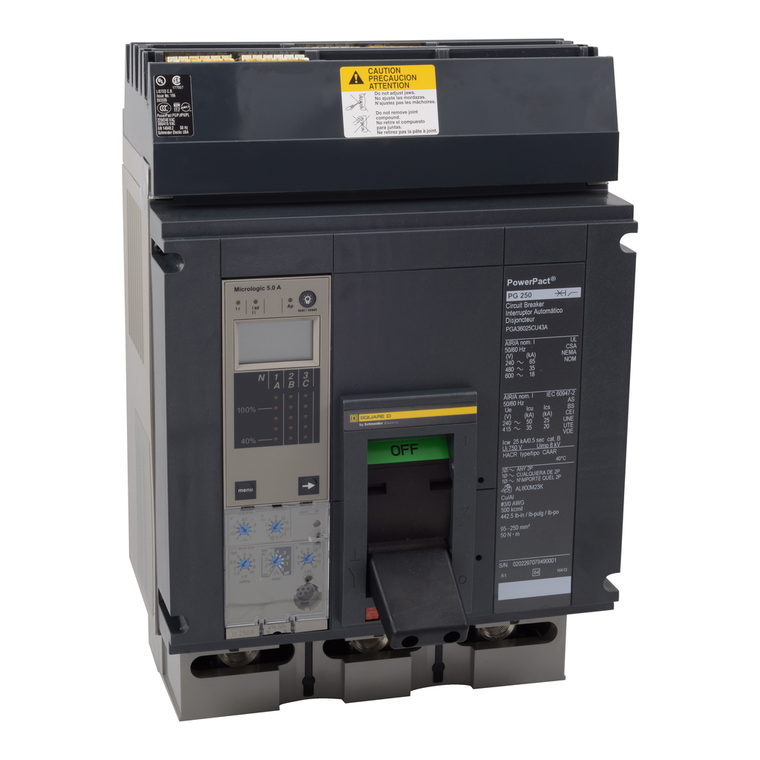

Schneider Electric PGA36080U31A Molded Case Circuit Breaker 600V 800A

Schneider Electric PGA36080U31A Molded Case Circuit Breaker 600V 800A

Schneider Electric
SKU:
PGA36080U31A
|
UPC:
7.85902E+11
$15,390.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Local Signalling:
overload 1 1 LED amber) || 1 trip indicator green)
Mounting Support:
bracket
Line Rated Current:
800-800 A
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Range:
PowerPact
Awg Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Environmental Disclosure:
ENVPEP2206033EN
Net Weight:
32 lb(US)
Trip Unit Name:
MicroLogic 3.0
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Control Type:
toggle
Sustainable Offer Status:
Green Premium product
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Device Application:
distribution
Circuit Breaker Application:
HACR rated
Product Certifications:
UL || CSA || NOM
Product Name:
PowerPact P
Breaking Capacity Code:
G
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
front cover IP40
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Warranty:
18 months
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Ambient Air Temperature For Storage:
-50-85 °C
Quality Labels:
CE
Poles Description:
3P
Terminal Identifier:
AL800M23K
Pollution Degree:
3 IEC 60947-1
Pvc Free:
Yes
Electrical Connection:
I-Line connection, line || lugs, load
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Phase Connection:
ABC
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Mercury Free:
Yes
Quantity Per Set:
1
Mounting Mode:
I-Line bracket)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Circularity Profile:
ENVEOLI2206033EN
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Ambient Air Temperature For Operation:
-2-70 °C
Continuous Current Rating:
0.8
Product Or Component Type:
circuit breaker
Width:
8.27 in
Depth:
8.05 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Wire Stripping Length:
25 mm
Height:
12.86 in
Network Frequency:
50/60 Hz
Mounting Height:
9 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
