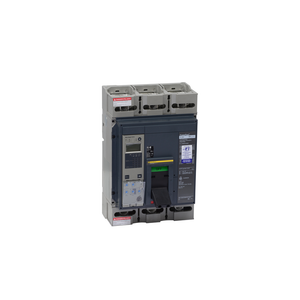

Schneider Electric PGA36080U44A Molded Case Circuit Breaker 600V 800A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric PGA36080U44A Molded Case Circuit Breaker 600V 800A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

PGA36080U44A

UPC:

785901458081

MPN:

Condition:

New

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Circuit Breaker Application:

HACR rated

Line Rated Current:

800-800 A

Range:

PowerPact

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Mercury Free:

Yes

Pollution Degree:

3 IEC 60947-1

Continuous Current Rating:

0.8

Control Type:

toggle

Local Signalling:

overload 1 1 LED amber) || 1 flag green) || trip causes 4 trip indicator red)

Net Weight:

32 lb(US)

Mounting Mode:

I-Line bracket)

Mounting Support:

bracket

Network Frequency:

50/60 Hz

Depth:

8.05 in

Warranty:

18 months

Awg Gauge:

3 x AWG 3/0...500 kcmil aluminium/copper

Quality Labels:

CE

Environmental Disclosure:

ENVPEP2206033EN

Width:

8.27 in

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Terminal Identifier:

AL800M23K

Tightening Torque:

50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m

Eu Rohs Directive:

Compliant with Exemptions

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz UL 489

Phase Connection:

ABC

Mounting Height:

9 in

Long Time Pick-Up Adjustment Range:

0.4...1 x Ir

Ambient Air Temperature For Storage:

-50-85 °C

Ambient Air Temperature For Operation:

-2-70 °C

Poles Description:

3P

Breaking Capacity Code:

G

Breaking Capacity:

AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Connection:

I-Line connection, line || lugs, load

Wire Stripping Length:

25 mm

Device Application:

distribution

Product Name:

PowerPact P

Pvc Free:

Yes

Ip Degree Of Protection:

front cover IP40

Trip Unit Name:

MicroLogic 6.0 A

[Ics] Rated Service Breaking Capacity:

25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2

Sustainable Offer Status:

Green Premium product

Trip Unit Technology:

electronic, ammeter, MicroLogic 6.0 A, LSIG

Quantity Per Set:

1

Product Or Component Type:

circuit breaker

Product Certifications:

UL || CSA || NOM

Circularity Profile:

ENVEOLI2206033EN

Height:

12.86 in

Rohs Exemption Information:

Yes
