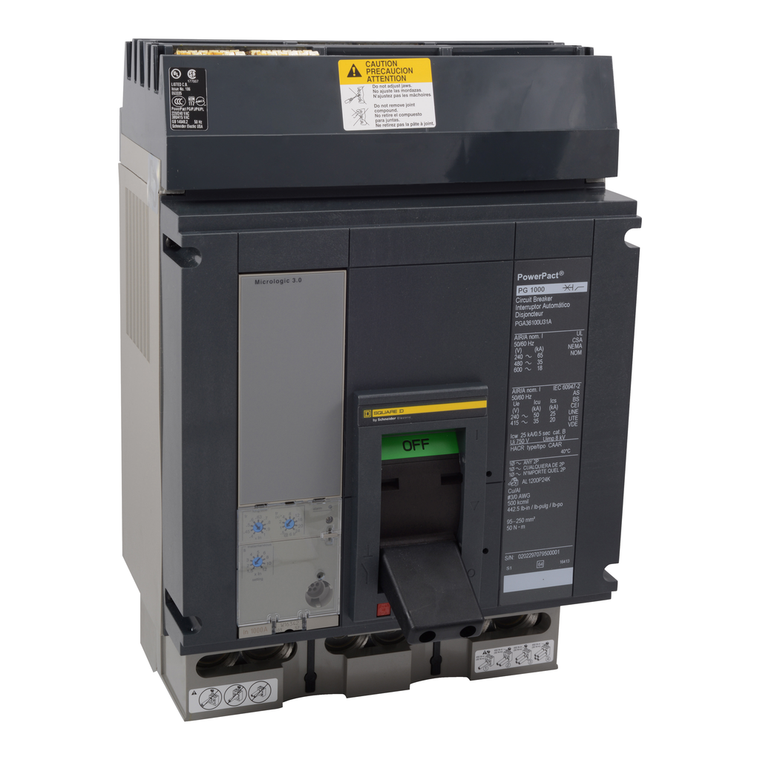

Schneider Electric PGA36100U33A Molded Case Circuit Breaker 600V 1000A

Schneider Electric PGA36100U33A Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
PGA36100U33A
|
UPC:
3606486285596
Availability:
Contact us to confirm availability and lead times.
$21,131.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Terminal Identifier:
AL1200P25K
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Phase Connection:
ABC
Wire Stripping Length:
30 mm
Circularity Profile:
ENVEOLI2206033EN
Pvc Free:
Yes
Height:
16.16 in
Rohs Exemption Information:
Yes
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Poles Description:
3P
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 5.0, LSI
Line Rated Current:
1000-1000 A
Mercury Free:
Yes
Quantity Per Set:
1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Height:
9 in
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Depth:
8.05 in
Continuous Current Rating:
0.8
Control Type:
toggle
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Name:
PowerPact P
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Circuit Breaker Application:
HACR rated
Network Frequency:
50/60 Hz
Range:
PowerPact
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Net Weight:
32 lb(US)
Mounting Mode:
I-Line bracket)
Electrical Connection:
I-Line connection, line || lugs, load
Sustainable Offer Status:
Green Premium product
Mounting Support:
bracket
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Warranty:
18 months
Breaking Capacity Code:
G
Trip Unit Name:
MicroLogic 5.0
Eu Rohs Directive:
Compliant with Exemptions
Local Signalling:
overload 1 trip indicator green) || 1 trip indicator green)
Pollution Degree:
3 IEC 60947-1
Ip Degree Of Protection:
front cover IP40
Product Certifications:
UL || CSA || NOM
Environmental Disclosure:
ENVPEP2206033EN
Ambient Air Temperature For Operation:
-2-70 °C
Quality Labels:
CE
Width:
8.27 in
Device Application:
distribution
Product Or Component Type:
circuit breaker
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
