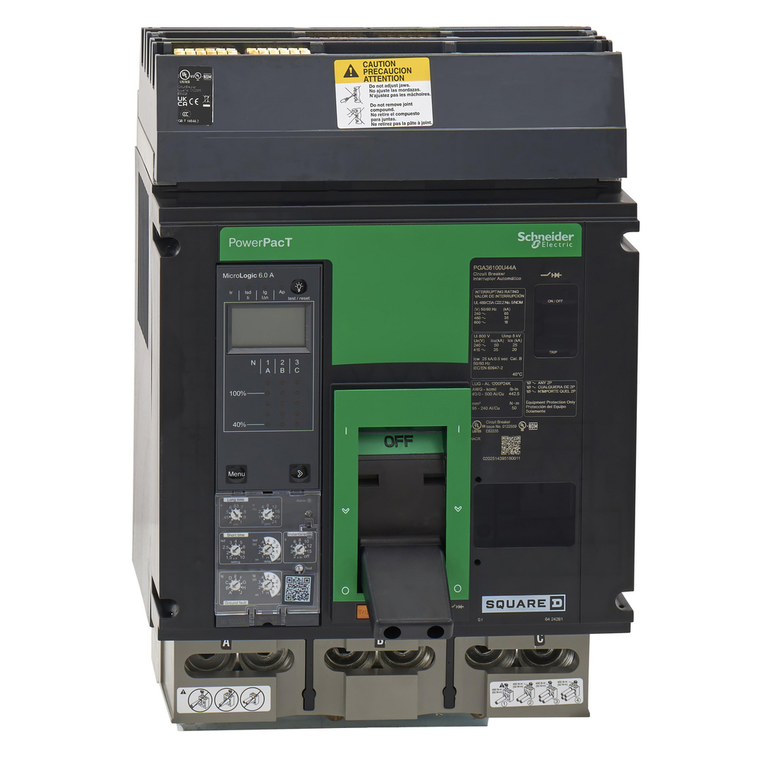

Schneider Electric PGA36100U44A Molded Case Circuit Breaker 600V 1000A

Schneider Electric PGA36100U44A Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
PGA36100U44A
|
UPC:
785901694632
Availability:
Contact us to confirm availability and lead times.
$25,008.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Breaking Capacity Code:
G
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
circuit breaker
Product Certifications:
UL || CSA || NOM
Pollution Degree:
3 IEC 60947-1
Local Signalling:
overload 1 trip indicator green) || 1 trip indicator green) || trip causes 1 trip indicator green)
Warranty:
18 months
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Quality Labels:
CE
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Pvc Free:
Yes
Mounting Mode:
I-Line bracket)
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Poles Description:
3P
Wire Stripping Length:
30 mm
Ip Degree Of Protection:
front cover IP40
Circuit Breaker Application:
HACR rated
Trip Unit Name:
MicroLogic 6.0 A
Depth:
8.05 in
Electrical Connection:
I-Line connection, line || lugs, load
Control Type:
toggle
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Mounting Height:
9 in
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Quantity Per Set:
1
Line Rated Current:
1000-1000 A
Width:
8.27 in
Range:
PowerPact
Phase Connection:
ABC
Circularity Profile:
ENVEOLI2206033EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Product Name:
PowerPact P
Terminal Identifier:
AL1200P25K
Mounting Support:
bracket
Continuous Current Rating:
0.8
Ambient Air Temperature For Operation:
-2-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Device Application:
distribution
Ambient Air Temperature For Storage:
-50-85 °C
Eu Rohs Directive:
Compliant with Exemptions
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Height:
16.16 in
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Rohs Exemption Information:
Yes
Network Frequency:
50/60 Hz
Environmental Disclosure:
ENVPEP2206033EN
Net Weight:
32 lb(US)
