Schneider Electric PJA36120 Molded Case Circuit Breaker 600V 1200A
Schneider Electric

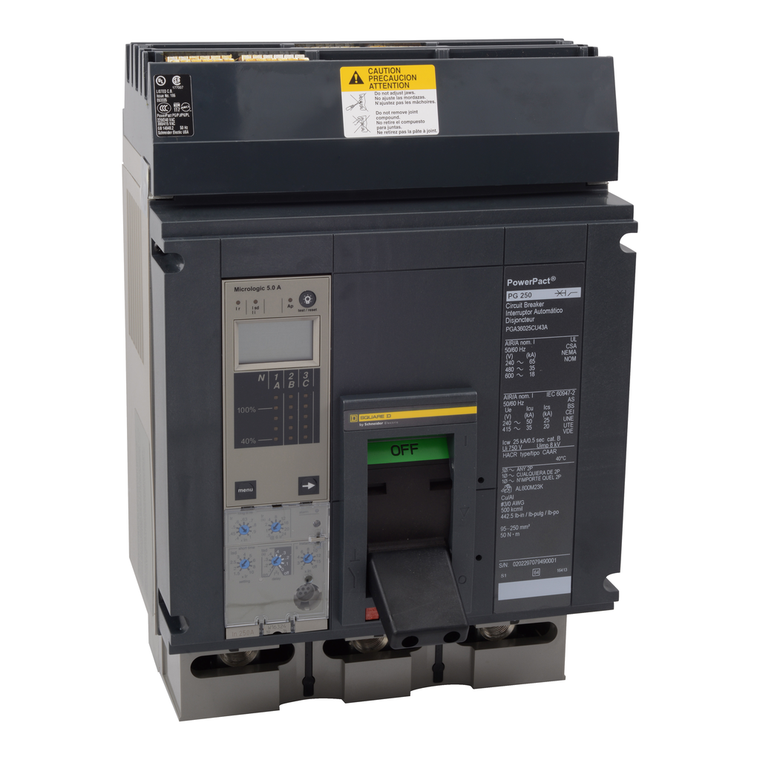

Schneider Electric PGA36120U43A Molded Case Circuit Breaker 600V 1200A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 5.0A trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Width:
- 8.27 in
- Range:
- PowerPact
- Quantity Per Set:
- 1
- [Ics] Rated Service Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Breaking Capacity:
- AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Trip Unit Name:
- MicroLogic 5.0 A
- Mounting Mode:
- I-Line bracket)
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Name:
- PowerPact P
- Ambient Air Temperature For Storage:
- -50-85 °C
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- circuit breaker
- Mounting Support:
- bracket
- Ip Degree Of Protection:
- front cover IP40
- Mercury Free:
- Yes
- Net Weight:
- 32 lb(US)
- Sustainable Offer Status:
- Green Premium product
- Control Type:
- toggle
- Network Frequency:
- 50/60 Hz
- Device Application:
- distribution
- Breaking Capacity Code:
- G
- Environmental Disclosure:
- ENVPEP2206033EN
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Pvc Free:
- Yes
- Phase Connection:
- ABC
- Poles Description:
- 3P
- Mounting Height:
- 9 in
- Product Certifications:
- UL || CSA || NOM
- Wire Stripping Length:
- 30 mm
- Electrical Connection:
- I-Line connection, line || lugs, load
- Line Rated Current:
- 1200-1200 A
- Circuit Breaker Application:
- HACR rated
- Warranty:
- 18 months
- Continuous Current Rating:
- 0.8
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 5.0 A, LSI
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Depth:
- 8.05 in
- Quality Labels:
- CE
- Long Time Pick-Up Adjustment Range:
- 0.4...1 x Ir
- Local Signalling:
- overload 1 1 LED amber) || 1 flag green) || trip causes 4 trip indicator red)
- Pollution Degree:
- 3 IEC 60947-1
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Height:
- 16.16 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Operation:
- -2-70 °C
- Circularity Profile:
- ENVEOLI2206033EN
- Awg Gauge:
- 4 x AWG 3/0...500 kcmil aluminium/copper
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
- Terminal Identifier:
- AL1200P25K
- Tightening Torque:
- 50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz UL 489
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
