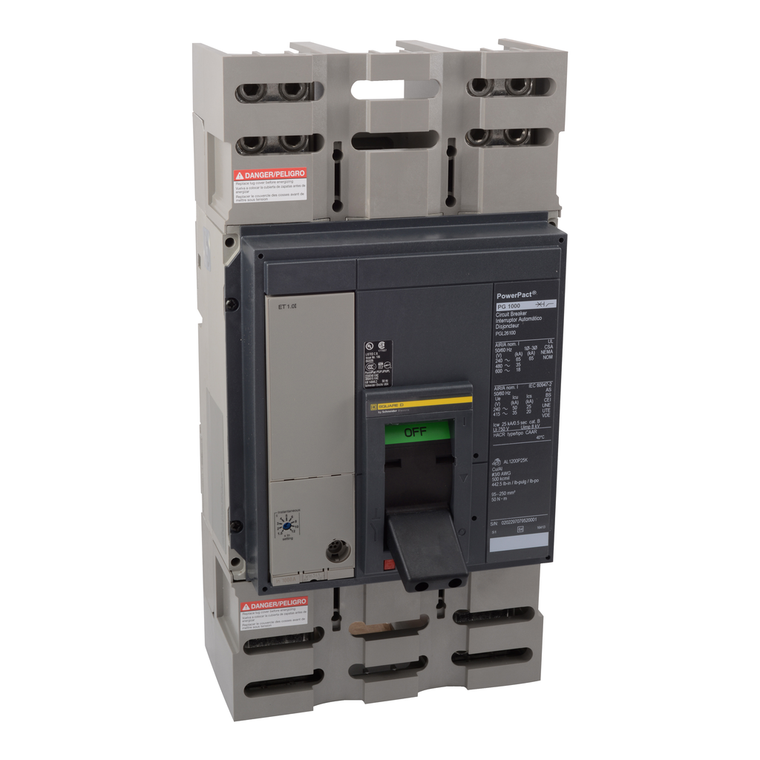

Schneider Electric PGL36100CU33AMO Molded Case Circuit Breaker 600V 1000A

Schneider Electric PGL36100CU33AMO Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
PGL36100CU33AMO
|
UPC:
785901956747
$35,630.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. This unit includes a 24VDC motor operator. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Net Weight:
32 lb(US)
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Width:
8.27 in
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Wire Stripping Length:
30 mm
Pvc Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
UL || CSA || NOM
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP2206033EN
Eu Rohs Directive:
Compliant with Exemptions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Quantity Per Set:
1
Device Application:
distribution
Continuous Current Rating:
1
Circularity Profile:
ENVEOLI2206033EN
Breaking Capacity Code:
G
Terminal Identifier:
AL1200P25K
Circuit Breaker Application:
HACR rated
Height:
16.16 in
Ambient Air Temperature For Operation:
-2-70 °C
Product Name:
PowerPact P
Local Signalling:
1 trip indicator green)
Pollution Degree:
3 IEC 60947-1
Ambient Air Temperature For Storage:
-50-85 °C
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Accessory / Separate Part Type:
motor operator 24...30 V DC
Trip Unit Name:
MicroLogic 5.0
Control Type:
motor mechanism
Rohs Exemption Information:
Yes
Trip Unit Technology:
electronic, standard, MicroLogic 5.0, LSI
Line Rated Current:
1000-1000 A
Product Or Component Type:
circuit breaker
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Poles Description:
3P
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Range:
PowerPact
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Warranty:
18 months
Network Frequency:
50/60 Hz
Depth:
8.05 in
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Electrical Connection:
lugs, load || lugs, line
Ip Degree Of Protection:
front cover IP40
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
