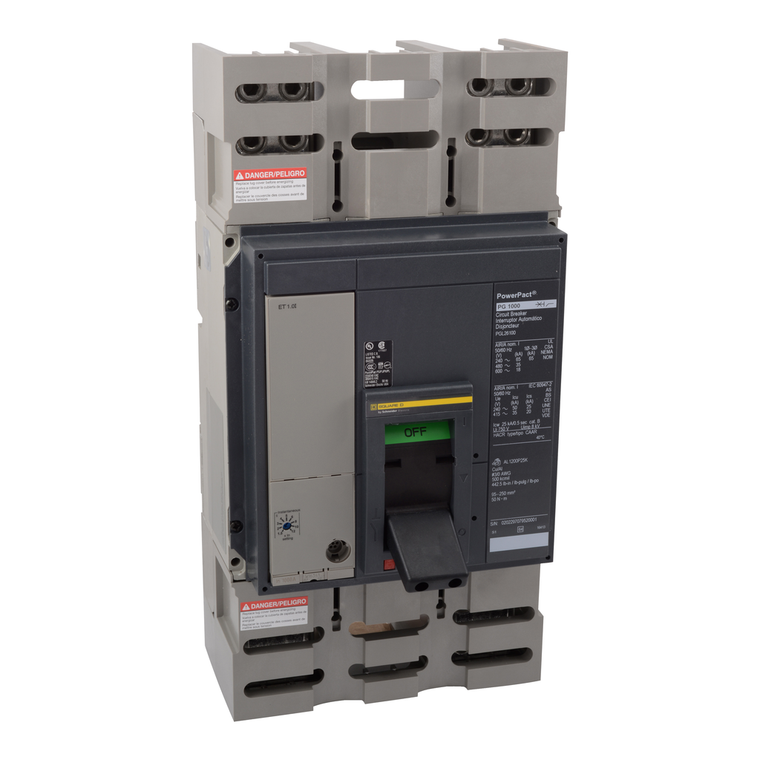

Schneider Electric PGL36120U31A Molded Case Circuit Breaker 600V 1200A

Schneider Electric PGL36120U31A Molded Case Circuit Breaker 600V 1200A

Schneider Electric
SKU:
PGL36120U31A
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$19,836.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Net Weight:
32 lb(US)
Product Name:
PowerPact P
Breaking Capacity Code:
G
Product Certifications:
UL || CSA || NOM
Continuous Current Rating:
0.8
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Electrical Connection:
lugs, load || lugs, line
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Device Application:
distribution
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Sustainable Offer Status:
Green Premium product
Control Type:
toggle
Ip Degree Of Protection:
front cover IP40
Pollution Degree:
3 IEC 60947-1
Circuit Breaker Application:
HACR rated
Local Signalling:
1 trip indicator green)
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Quality Labels:
CE
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Height:
16.16 in
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Pvc Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Poles Description:
3P
Wire Stripping Length:
30 mm
Quantity Per Set:
1
Depth:
8.05 in
Product Or Component Type:
circuit breaker
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Trip Unit Name:
MicroLogic 3.0
Mercury Free:
Yes
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Line Rated Current:
1200-1200 A
Environmental Disclosure:
ENVPEP2206033EN
Ambient Air Temperature For Storage:
-50-85 °C
Terminal Identifier:
AL1200P25K
Warranty:
18 months
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Circularity Profile:
ENVEOLI2206033EN
Rohs Exemption Information:
Yes
Width:
8.27 in
Ambient Air Temperature For Operation:
-2-70 °C
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Range:
PowerPact
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Network Frequency:
50/60 Hz
