Schneider Electric MGA36800E10JK Molded Case Circuit Breaker 600V 800A
Schneider Electric

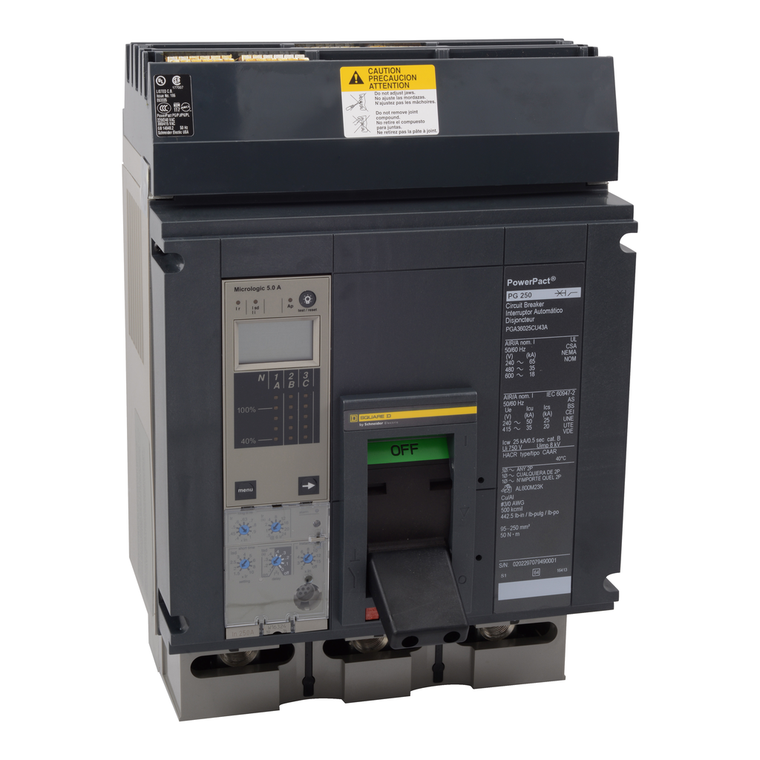

Schneider Electric PJA36080CU33A Molded Case Circuit Breaker 600V 800A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Storage:
- -50-85 °C
- Height:
- 12.86 in
- Width:
- 8.27 in
- Wire Stripping Length:
- 25 mm
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz UL 489
- Mounting Support:
- bracket
- Product Certifications:
- UL || CSA || NOM
- Product Or Component Type:
- circuit breaker
- Poles Description:
- 3P
- [Ics] Rated Service Breaking Capacity:
- 35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range:
- PowerPact
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Continuous Current Rating:
- 1
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mounting Mode:
- I-Line bracket)
- Product Name:
- PowerPact P
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Breaking Capacity Code:
- J
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP2206033EN
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Trip Unit Name:
- MicroLogic 5.0
- Ip Degree Of Protection:
- front cover IP40
- Long Time Pick-Up Adjustment Range:
- 0.4...1 x Ir
- Depth:
- 8.05 in
- Line Rated Current:
- 800-800 A
- Net Weight:
- 32 lb(US)
- Circuit Breaker Application:
- HACR rated
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Electrical Connection:
- I-Line connection, line || lugs, load
- Local Signalling:
- overload 1 1 LED amber) || 1 trip indicator green)
- Trip Unit Technology:
- electronic, standard, MicroLogic 5.0, LSI
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
- Eu Rohs Directive:
- Compliant with Exemptions
- Network Frequency:
- 50/60 Hz
- Mounting Height:
- 9 in
- Ambient Air Temperature For Operation:
- -2-70 °C
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- distribution
- Quality Labels:
- CE
- Awg Gauge:
- 3 x AWG 3/0...500 kcmil aluminium/copper
- Quantity Per Set:
- 1
- Breaking Capacity:
- AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Phase Connection:
- ABC
- Control Type:
- toggle
- Terminal Identifier:
- AL800M23K
- Circularity Profile:
- ENVEOLI2206033EN
- Pollution Degree:
- 3 IEC 60947-1
- Tightening Torque:
- 50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
