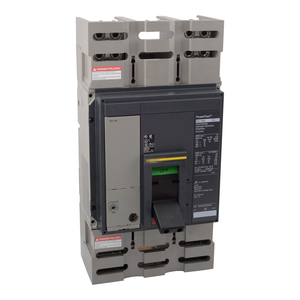

Schneider Electric PJA36100U41A Molded Case Circuit Breaker 600V 1000A

Schneider Electric PJA36100U41A Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
PJA36100U41A
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$22,845.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 3.0A trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Circularity Profile:
ENVEOLI2206033EN
Ip Degree Of Protection:
front cover IP40
Rohs Exemption Information:
Yes
Mounting Mode:
I-Line bracket)
Pvc Free:
Yes
Product Certifications:
UL || CSA || NOM
Quality Labels:
CE
Ambient Air Temperature For Operation:
-2-70 °C
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Continuous Current Rating:
0.8
Product Name:
PowerPact P
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Network Frequency:
50/60 Hz
Breaking Capacity Code:
J
Width:
8.27 in
Environmental Disclosure:
ENVPEP2206033EN
Quantity Per Set:
1
Mercury Free:
Yes
Poles Description:
3P
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pollution Degree:
3 IEC 60947-1
Depth:
8.05 in
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Electrical Connection:
I-Line connection, line || lugs, load
Range:
PowerPact
Terminal Identifier:
AL1200P25K
Height:
16.16 in
Mounting Support:
bracket
Control Type:
toggle
Product Or Component Type:
circuit breaker
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Device Application:
distribution
Phase Connection:
ABC
Circuit Breaker Application:
HACR rated
Wire Stripping Length:
30 mm
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Name:
MicroLogic 3.0 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Local Signalling:
1 trip indicator green)
Line Rated Current:
1000-1000 A
Net Weight:
32 lb(US)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Ambient Air Temperature For Storage:
-50-85 °C
Trip Unit Technology:
electronic, ammeter, MicroLogic 3.0 A, LI
Mounting Height:
9 in
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
