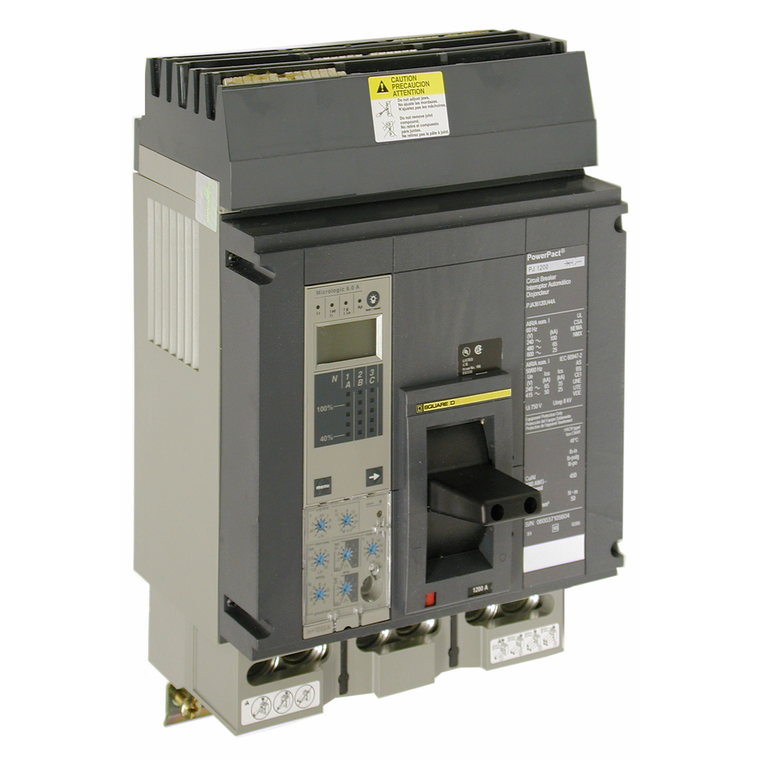

Schneider Electric PJA36120U31C Molded Case Circuit Breaker 600V 1200A

(No reviews yet) Write a Review
SKU:
PJA36120U31C
UPC:
3606486118467
Condition:
New
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Continuous Current Rating:
0.8
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Phase Connection:
ABC
Environmental Disclosure:
ENVPEP1407012EN
Wire Stripping Length:
30 mm
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Ambient Air Temperature For Operation:
-2-70 °C
Mercury Free:
Yes
Quantity Per Set:
1
Mounting Mode:
I-Line bracket)
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Line Rated Current:
1200-1200 A
Trip Unit Name:
MicroLogic 3.0
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Terminal Identifier:
AL1200P25K
Rohs Exemption Information:
Yes
Height:
16.16 in
Mounting Support:
bracket
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Depth:
8.05 in
Pollution Degree:
3 IEC 60947-1
Ip Degree Of Protection:
front cover IP40
Mounting Height:
9 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Product Name:
PowerPact P
Range:
PowerPact
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Circularity Profile:
ENVEOLI1407012EN
Warranty:
18 months
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Or Component Type:
circuit breaker
Electrical Connection:
I-Line connection, line || lugs, load
Local Signalling:
overload 1 1 LED amber) || 1 trip indicator green)
Poles Description:
3P
Width:
8.27 in
Breaking Capacity Code:
J
Ambient Air Temperature For Storage:
-50-85 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Pvc Free:
Yes
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
Network Frequency:
50/60 Hz
Control Type:
toggle
Circuit Breaker Application:
HACR rated
Eu Rohs Directive:
Compliant
Net Weight:
32 lb(US)
Product Certifications:
UL || CSA || NOM
Brochure:
View
Catalog:
View
Datasheet:
View
$32,992.50

Description

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
