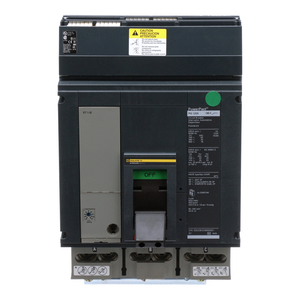

Schneider Electric PJA36120U41A Molded Case Circuit Breaker 600V 1200A

(No reviews yet) Write a Review
SKU:
PJA36120U41A
UPC:
785901879336
Condition:
New
Phase Connection:
ABC
Pvc Free:
Yes
Quality Labels:
CE
Product Certifications:
UL || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Wire Stripping Length:
30 mm
Height:
16.16 in
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Ambient Air Temperature For Storage:
-50-85 °C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Terminal Identifier:
AL1200P25K
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range:
PowerPact
Breaking Capacity Code:
J
Warranty:
18 months
Control Type:
toggle
Pollution Degree:
3 IEC 60947-1
Product Name:
PowerPact P
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
circuit breaker
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Net Weight:
32 lb(US)
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Width:
8.27 in
Quantity Per Set:
1
Mercury Free:
Yes
Mounting Height:
9 in
Network Frequency:
50/60 Hz
Continuous Current Rating:
0.8
Environmental Disclosure:
ENVPEP2206033EN
Trip Unit Name:
MicroLogic 3.0 A
Mounting Support:
bracket
Eu Rohs Directive:
Compliant with Exemptions
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Electrical Connection:
I-Line connection, line || lugs, load
Mounting Mode:
I-Line bracket)
Poles Description:
3P
Depth:
8.05 in
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Circularity Profile:
ENVEOLI2206033EN
Local Signalling:
overload 1 1 LED amber) || 1 flag green) || trip causes 4 trip indicator red)
Line Rated Current:
1200-1200 A
Trip Unit Technology:
electronic, ammeter, MicroLogic 3.0 A, LI
Rohs Exemption Information:
Yes
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Circuit Breaker Application:
HACR rated
Device Application:
distribution
Ip Degree Of Protection:
front cover IP40
Brochure:
View
Catalog:
View
Datasheet:
View
$22,845.00

Description

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 3.0A trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
