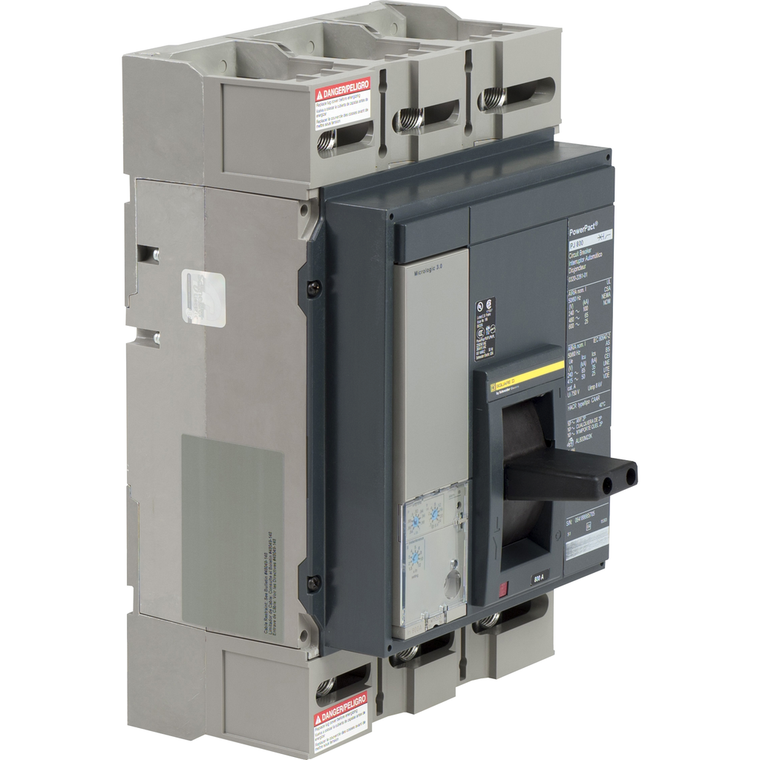

Schneider Electric PJL36025U31A Molded Case Circuit Breaker 600V 250A

Schneider Electric PJL36025U31A Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
PJL36025U31A
|
UPC:
785901458098
Availability:
Contact us to confirm availability and lead times.
$15,570.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 250A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Height:
12.86 in
Wire Stripping Length:
25 mm
Eu Rohs Directive:
Compliant with Exemptions
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Local Signalling:
overload 1 trip indicator green) || 1 trip indicator green)
Control Type:
toggle
Ambient Air Temperature For Storage:
-50-85 °C
Pvc Free:
Yes
Ip Degree Of Protection:
front cover IP40
Quantity Per Set:
1
Pollution Degree:
3 IEC 60947-1
Terminal Identifier:
AL800M23K
Awg Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Product Name:
PowerPact P
Warranty:
18 months
Poles Description:
3P
Line Rated Current:
250-250 A
Product Certifications:
UL || CSA || NOM
Depth:
8.05 in
Net Weight:
32 lb(US)
Environmental Disclosure:
ENVPEP2206033EN
Electrical Connection:
lugs, line || lugs, load
Quality Labels:
CE
Width:
8.27 in
Breaking Capacity Code:
J
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Network Frequency:
50/60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-2-70 °C
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Product Or Component Type:
circuit breaker
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Continuous Current Rating:
0.8
Mercury Free:
Yes
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Range:
PowerPact
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Circuit Breaker Application:
HACR rated
Circularity Profile:
ENVEOLI2206033EN
Device Application:
distribution
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mounting Mode:
unit mount lug)
Trip Unit Name:
MicroLogic 3.0
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mounting Support:
lug
