Schneider Electric

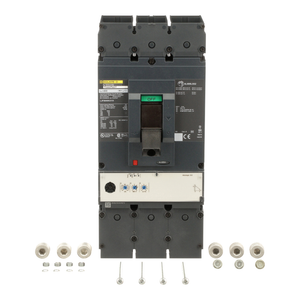

Schneider Electric PJL36060 Molded Case Circuit Breaker 600V 600V

(No reviews yet) Write a Review
SKU:
PJL36060
UPC:
785901687085
Condition:
New
Height:
12.86 in
Device Application:
distribution
Product Certifications:
UL || CSA || NOM
Ip Degree Of Protection:
front cover IP40
Mounting Mode:
unit mount lug)
Terminal Identifier:
AL800M23K
Awg Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Warranty:
18 months
Ambient Air Temperature For Storage:
-50-85 °C
Network Frequency:
50/60 Hz
Product Or Component Type:
circuit breaker
Trip Unit Technology:
electronic, basic, ET 1.0I, I
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Poles Description:
3P
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Control Type:
toggle
Wire Stripping Length:
25 mm
Breaking Capacity Code:
J
Sustainable Offer Status:
Green Premium product
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Electrical Connection:
lugs, line || lugs, load
Long Time Pick-Up Adjustment Range:
1 In
Circuit Breaker Application:
HACR rated
Pvc Free:
Yes
Quantity Per Set:
1
Mounting Support:
lug
Range:
PowerPact
Rohs Exemption Information:
Yes
Trip Unit Name:
ET 1.0I
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Environmental Disclosure:
ENVPEP2206033EN
Quality Labels:
CE
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Net Weight:
32 lb(US)
Product Name:
PowerPact P
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Depth:
8.05 in
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Circularity Profile:
ENVEOLI2206033EN
Line Rated Current:
600-600 A
Mercury Free:
Yes
Pollution Degree:
3 IEC 60947-1
Ambient Air Temperature For Operation:
-2-70 °C
Local Signalling:
1 trip indicator green)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Continuous Current Rating:
0.8
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
8.27 in
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Brochure:
View
Catalog:
View
Datasheet:
View
$14,783.00

Description

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
