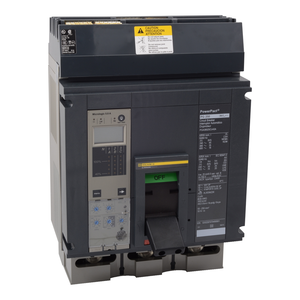

Schneider Electric PJL36080CU31A Molded Case Circuit Breaker 600V 800A

Schneider Electric PJL36080CU31A Molded Case Circuit Breaker 600V 800A

Schneider Electric
SKU:
PJL36080CU31A
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$22,868.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Wire Stripping Length:
25 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Terminal Identifier:
AL800M23K
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Local Signalling:
overload 1 trip indicator green) || 1 trip indicator green)
Warranty:
18 months
Product Or Component Type:
circuit breaker
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Continuous Current Rating:
1
Quantity Per Set:
1
Depth:
8.05 in
Circuit Breaker Application:
HACR rated
Range:
PowerPact
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Ambient Air Temperature For Storage:
-50-85 °C
Pollution Degree:
3 IEC 60947-1
Width:
8.27 in
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Mercury Free:
Yes
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Device Application:
distribution
Electrical Connection:
lugs, line || lugs, load
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Environmental Disclosure:
ENVPEP2206033EN
Net Weight:
32 lb(US)
Poles Description:
3P
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
800-800 A
Mounting Mode:
unit mount lug)
Height:
12.86 in
Control Type:
toggle
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
front cover IP40
Ambient Air Temperature For Operation:
-2-70 °C
Quality Labels:
CE
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Network Frequency:
50/60 Hz
Trip Unit Name:
MicroLogic 3.0
Breaking Capacity Code:
J
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Awg Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
ENVEOLI2206033EN
Pvc Free:
Yes
Product Certifications:
UL || CSA || NOM
Mounting Support:
lug
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Rohs Exemption Information:
Yes
Product Name:
PowerPact P
